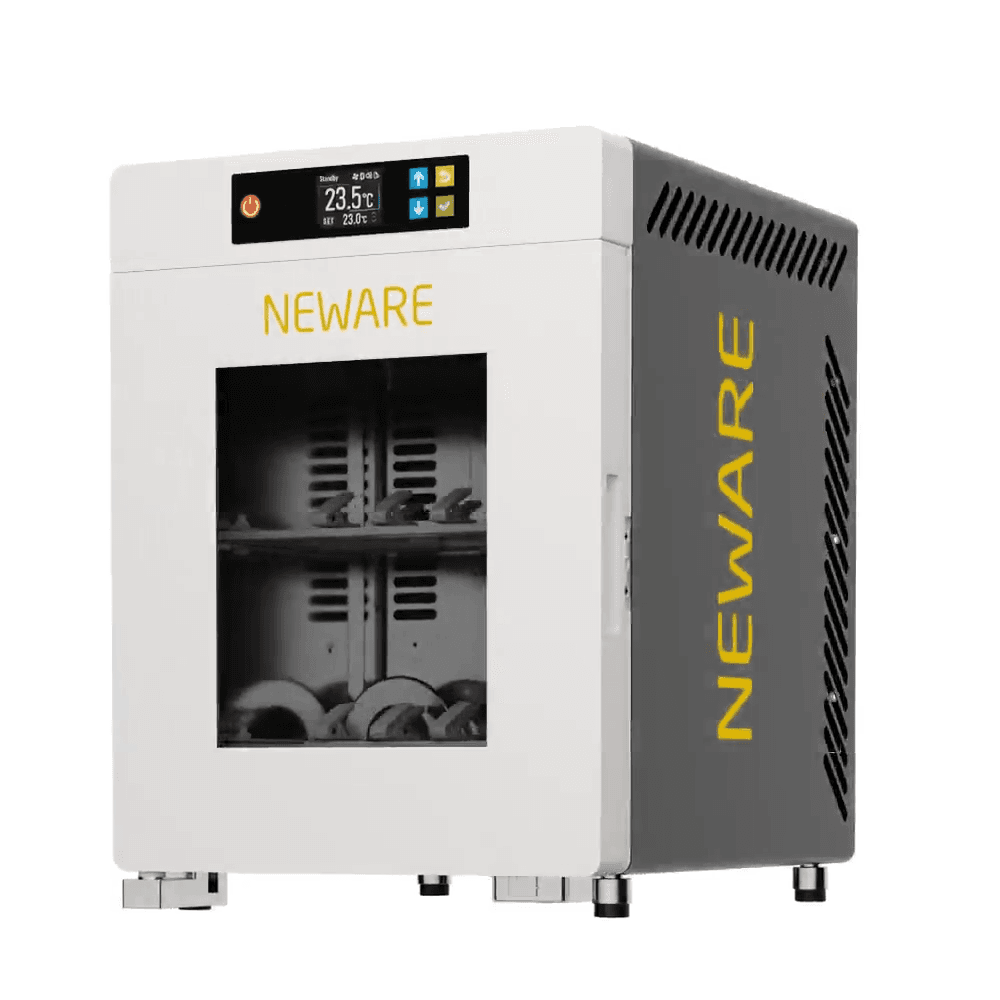

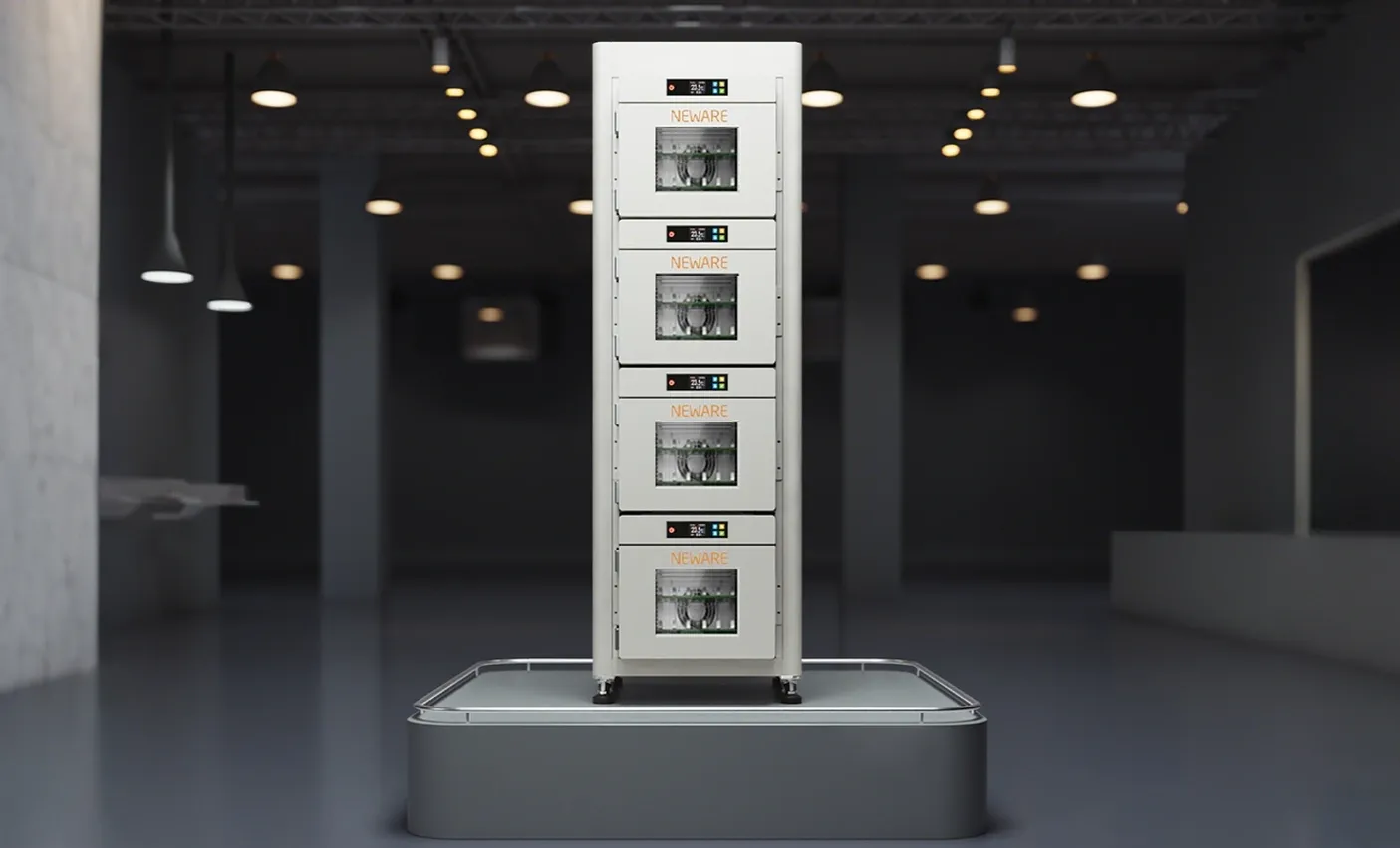

Mini Constant Temperature Chamber
WHW-25L-S
Applied to laboratory testing of pouch and coin battery cells, desktop constant temperature test chamber.
Size doesn't matter when it comes to impact.
| Coin Cells | NEWARE has created a complete set of solutions for laboratory materials research, including Cycle Life Testing, Rate Charging / Discharging Testing, GITT Testing, DCIR Testing, GSM Testing, dQ/dV Differential Capacity Curve Analysis and other functions. This solution caters to the varying levels of accuracy required for battery testing by Material Manufacturers, Universities, and Research Institutes. |
| Pouch Cells | NEWARE has created a complete set of solutions for laboratory materials research, including Cycle Life Testing, Rate Charging / Discharging Testing, GITT Testing, DCIR Testing, GSM Testing, dQ/dV Differential Capacity Curve Analysis and other functions. This solution caters to the varying levels of accuracy required for battery testing by Material Manufacturers, Universities, and Research Institutes. |
| Monitor&Alarm System | 1Smoke alarms, monitors, electronic access control systems, and other devices require batteries with high stability. NEWARE's battery testing solutions can perform comprehensive testing on Coin, Cylindrical, and Pouch batteries, including Cycle Life Testing and Pulse Simulation, to ensure their reliability. |
| Intelligent Recognition | Smoke alarms, monitors, electronic access control systems, and other devices require batteries with high stability. NEWARE's battery testing solutions can perform comprehensive testing on Coin, Cylindrical, and Pouch batteries, including Cycle Life Testing and Pulse Simulation, to ensure their reliability. |
Interpreting the beauty of research with data.
- Heating Efficiency:77℉ ~ 140℉≤50min (25℃~60 ℃)
- Number of Channels:16CH
- Temperature Fluctuation:≤1.8℉(1℃)(No load and stable temperature)
- Heating Efficiency: 77℉ ~ 140℉≤50min(25℃~60 ℃)
- Cooling Efficiency:77℉ ~ 59℉≤60min(25℃~15 ℃)
- Temperature Deviation:±3.6℉(±2.0℃)(No load and stable temperature)
The WHW-25L-S Mini Constant Temperature Chamber delivers high-performance testing capabilities in an ultra-compact design. Despite its small footprint, it offers robust functionality for demanding experimental needs. Whether you're working in a laboratory, studio, or even on a desktop, this mini chamber provides professional-grade temperature control and stability.
Refined temperature control for long-lasting insulation.
A 40mm thick polyurethane foam layer is installed between the outer cold-pressed steel plate and the inner stainless steel plate, providing superior internal temperature protection to ensure more accurate and reliable data.
Combining the functionalities of compatible charge-discharge detection equipment and environmental test chambers into one cleverly designed solution, our product maximizes space utilization and enhances equipment efficiency.

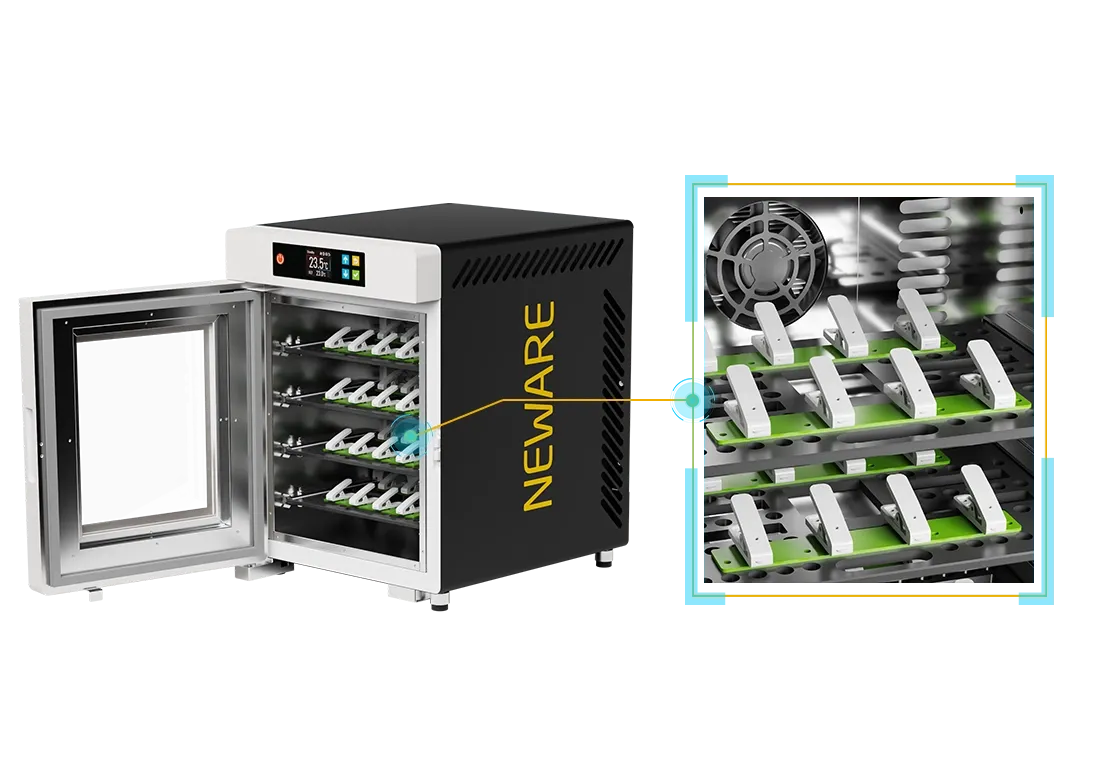

Neatly organized: 16 testing channels.
With a compact and slender body, it is more suitable for small-scale development and experiments. It has a practical volume of 25L and occupies less than 5.38sq.ft of space, freeing up more desktop space. It allows for real-time observation of experimental conditions inside the chamber. The high-quality insulated battery cell tray can accommodate up to 16 coin battery cells.

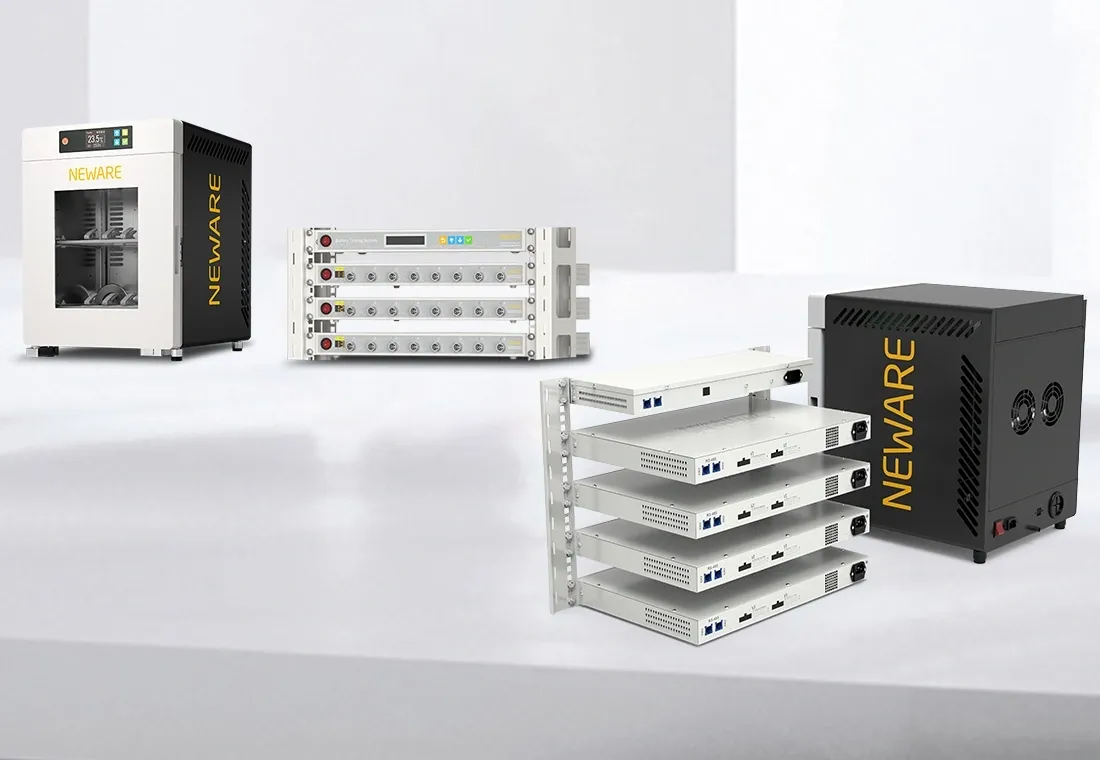

Unified management, smooth connectivity.
The constant temperature test chamber, battery cell testing equipment, and computer are interconnected through channel wires and data communication cables to achieve hardware interconnectivity. The computer features integrated BTS (Battery Test System) for temperature control settings and battery cell testing.

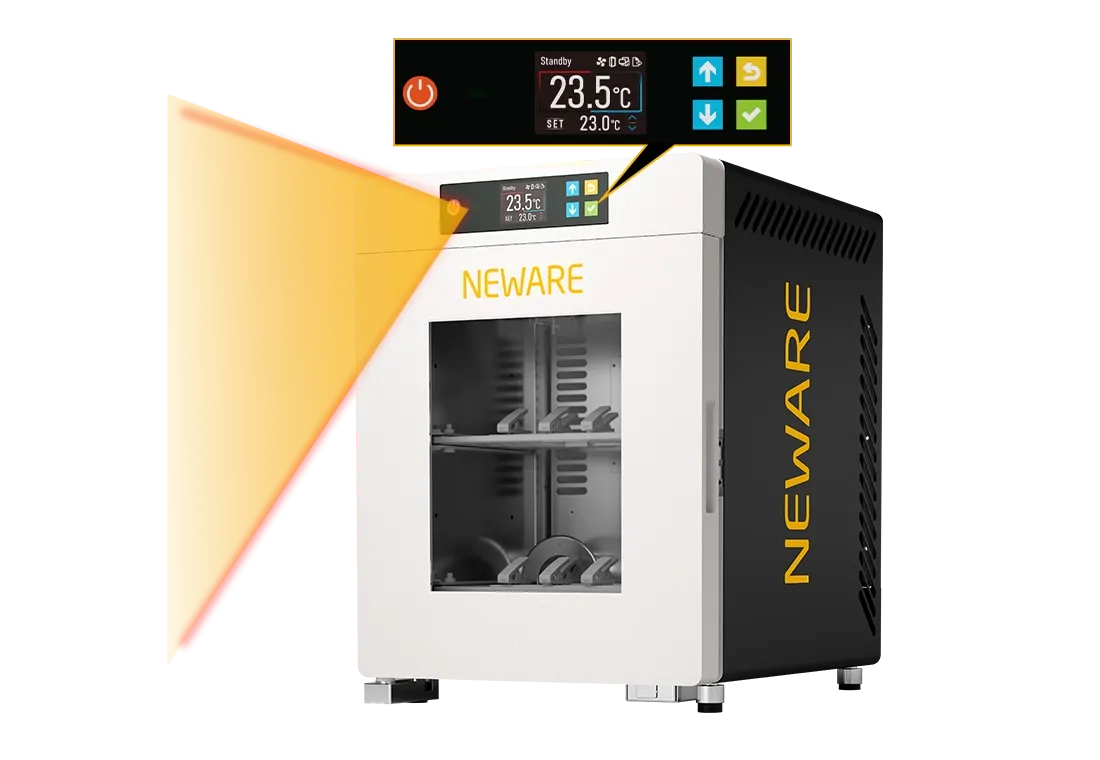

Intuitive interface, effortless operation.
WHW-25L-S prioritizes user experience and incorporates a touch LCD screen design with a user-friendly graphical interface and flexible configuration options. It features automatic screen wake-up through infrared human body sensing within a 1.5-meter range, allowing users to easily set up and manage the device.

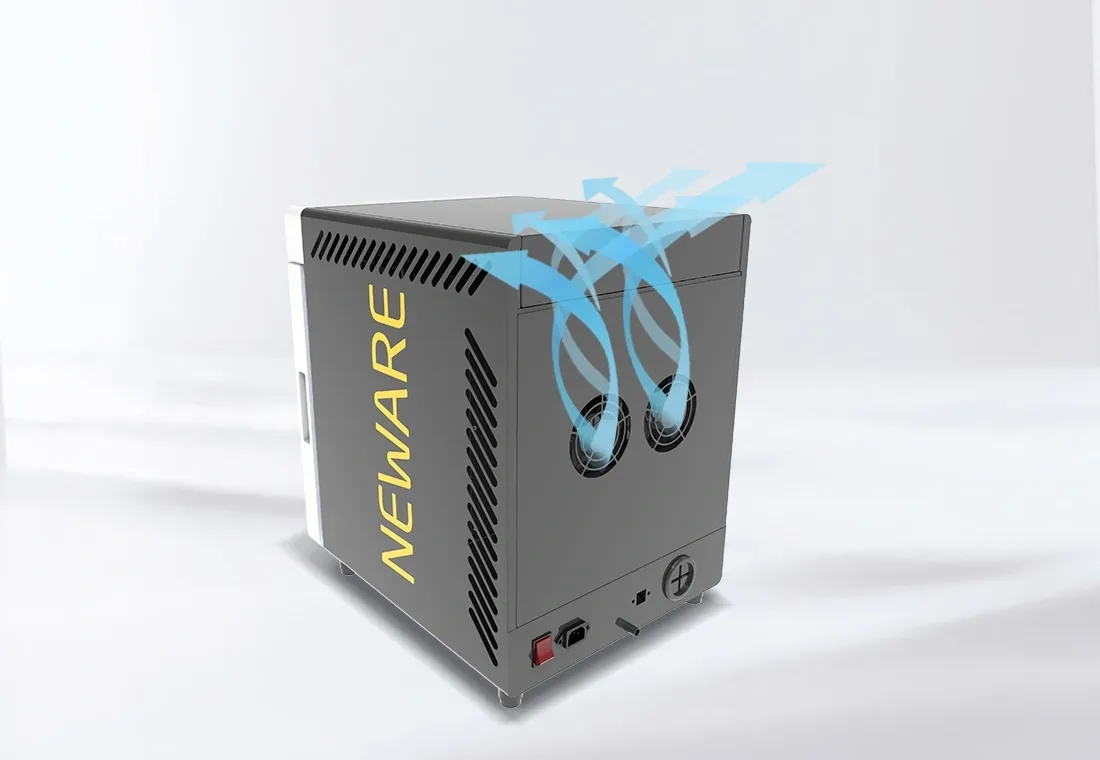

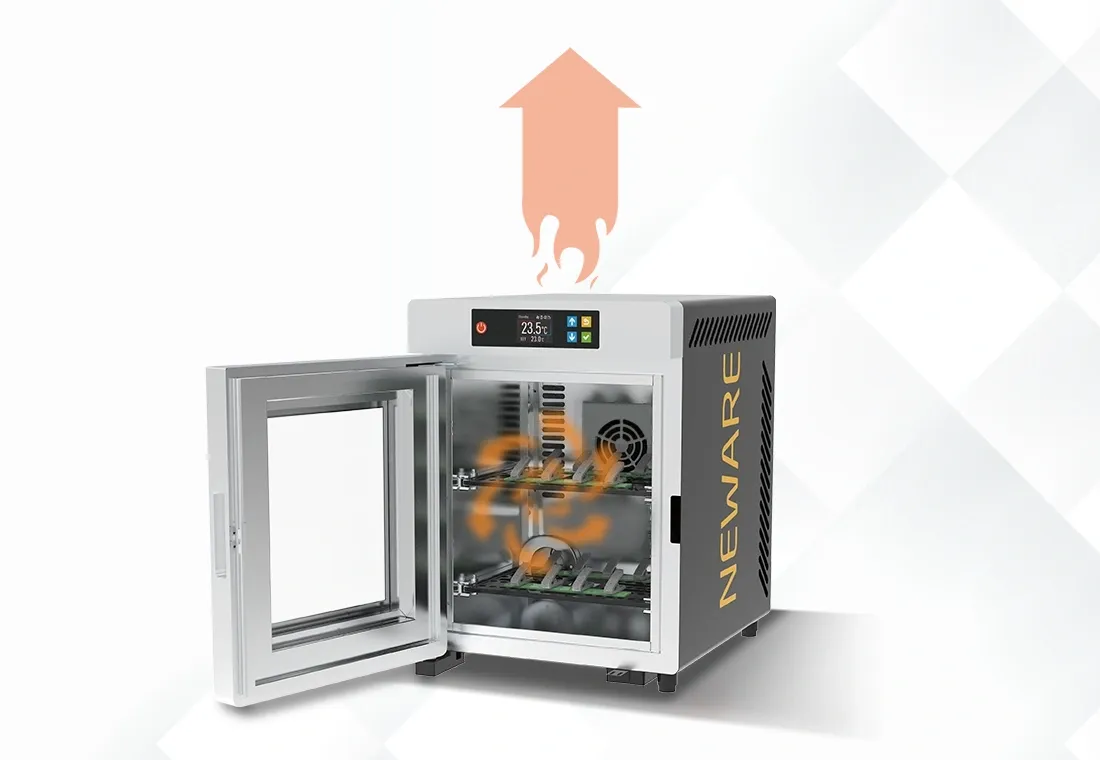

Powerful heat dissipation for optimal stability.
According to the set temperature value, the control system automatically calculates and controls the output of the semiconductor refrigeration (heating) module using the newly developed fuzzy PID algorithm by New Wei, in order to achieve dynamic balance.
The axial flow fan circulates the air evenly, with a large air outlet, ensuring uniform and fast heat dissipation.

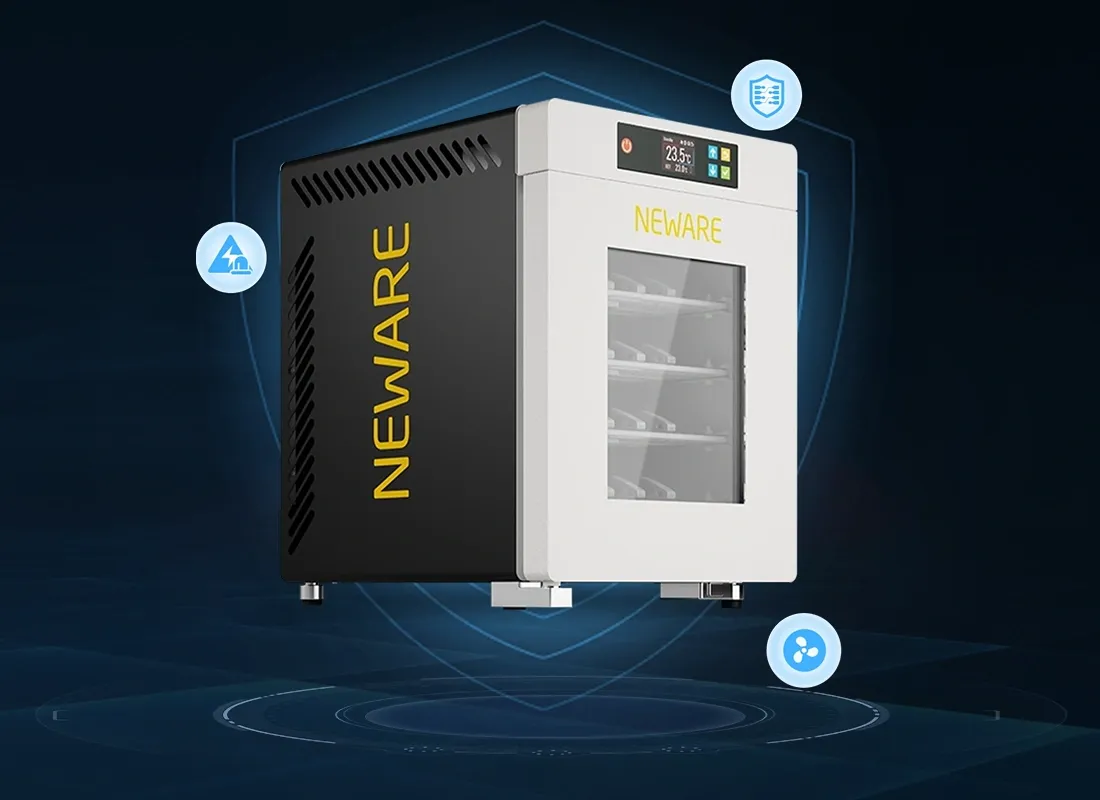

Perpetual dedication to safety protection.
- Over-temperature protection
- Electrical protection
- Abnormal monitoring of circulating fan operation
| Equipment name | Mini Constant Temperature Chamber |
| Model | WHW-25L-S |
| Nominal content product | 25L |
| Inner box size | W280mm × D250mm × H330mm |
| Overall dimensions | W360mm × D450mm × H500mm |
| Net weight of the equipment | About 40kg |
| Test the environmental conditions | Ambient temperature is + 25℃ |
| relative humidity is 85% | |
| with no sample in the test box (no load) | |
| Temperature range | 15 ~ 60℃ |
| Temperature fluctuation degree | 1℃ (equivalent to ± 0.5℃, with no load and stable temperature) |
| Temperature deviation | ± 2.0℃ (when no load and temperature is stable) |
| Limit the sample(This test equipment is prohibited by) | Test or storage of samples of inflammable, explosive and volatile substances |
| Test or storage of test samples of corrosive substances | |
| Test or storage of samples of strong electromagnetic emission sources | |
| Test and storage of test samples of radioactive substances | |
| Test and storage of test samples of highly toxic substances | |
| Testing or storage of tests or specimens that may produce such substances or objects | |
| Product application | Constant temperature test of buckle cell and new energy small soft package polymer cell (millipere level) |
