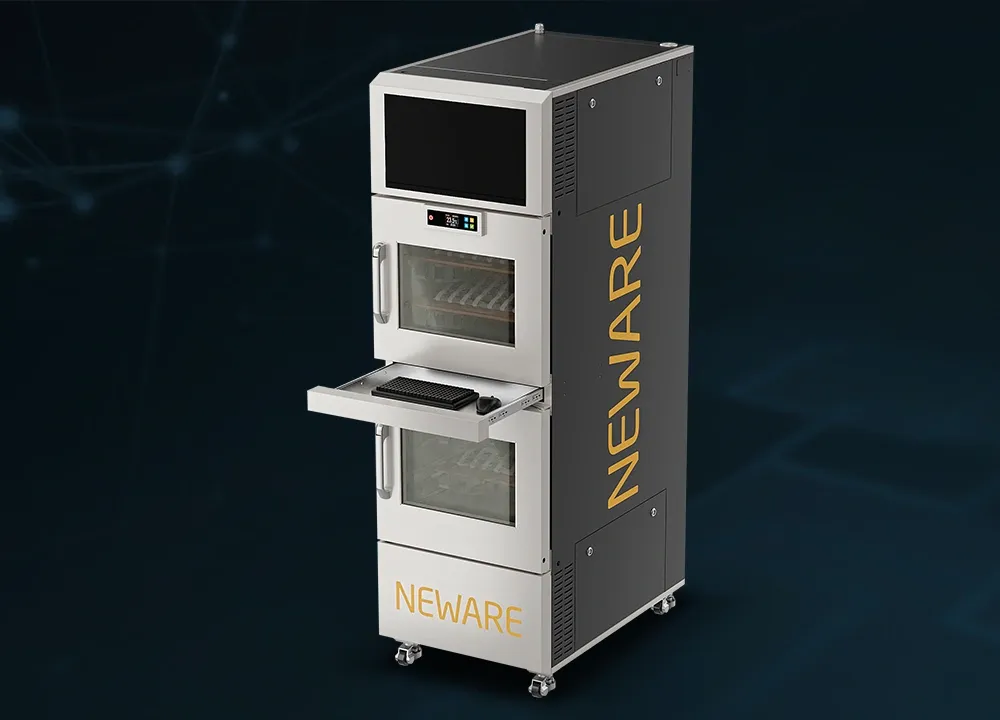

PC All-in-One Battery Testing System
WHW-200L2-0C-220V-9U-PC
Integrated environmental chamber and battery charge/discharge equipment with built-in computer system, capable of conducting battery testing and temperature performance evaluation simultaneously.

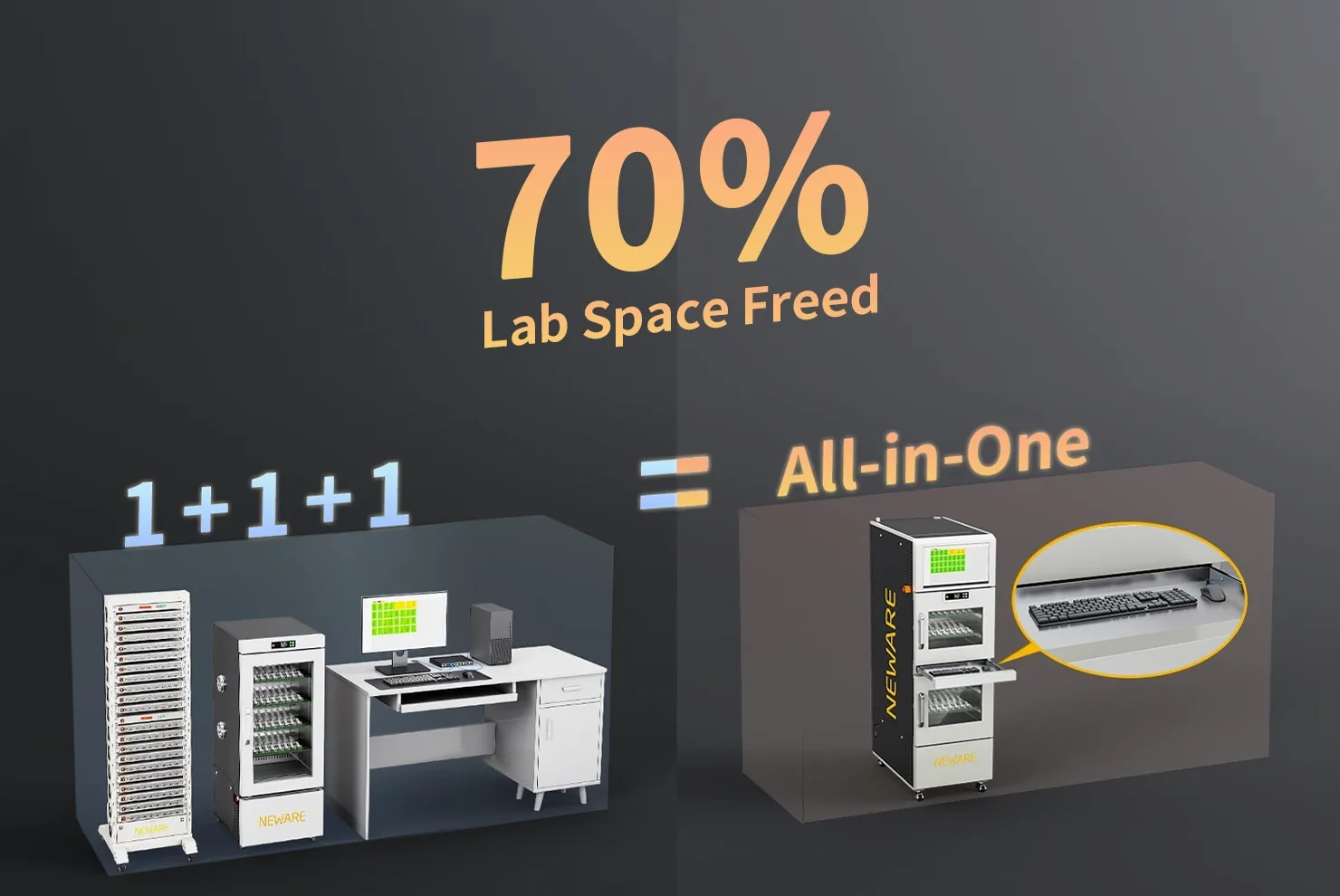

Space-saving integration, 70% lab space freed.
The system seamlessly combines an environmental chamber, battery charge/discharge unit, and built-in computer into a single cabinet, eliminating redundant structures. Achieve dual-function testing (battery performance + temperature validation) with no extra devices.
- Space Optimization: Integrates temperature control (0°C ~ 60°C), high-precision charge/discharge modules (±0.01%F.S. current accuracy), and data acquisition units into one compact frame.
- Function Fusion: Synchronize battery cycling tests with temperature simulations, erasing data delays from separated traditional setups.
- Streamlined Operation: Pre-installed software on the built-in PC enables parameter setup, real-time monitoring, and data storage without external devices.
Plug-and-play, professional testing in 5 minutes.
Power on, clamp the battery, and start testing—no complex wiring or debugging required.
- Instant Test Templates: Preloaded with global standard protocols (constant current/voltage, pulse modes) and customizable charge/discharge curves.
- Modular Scalability: Upgradeable power capacity and computing specs to evolve from material research to 3C battery validation.
Intelligent synergy control, end data silos.
AI-powered synchronization of environmental parameters, charge/discharge curves, and device data enables cross-dimensional analysis with zero human error.
- Real-Time Parameter Sync: Links chamber humidity/temperature, charge/discharge metrics, and battery surface temperature (optional auxiliary channels) at 10ms/sample.

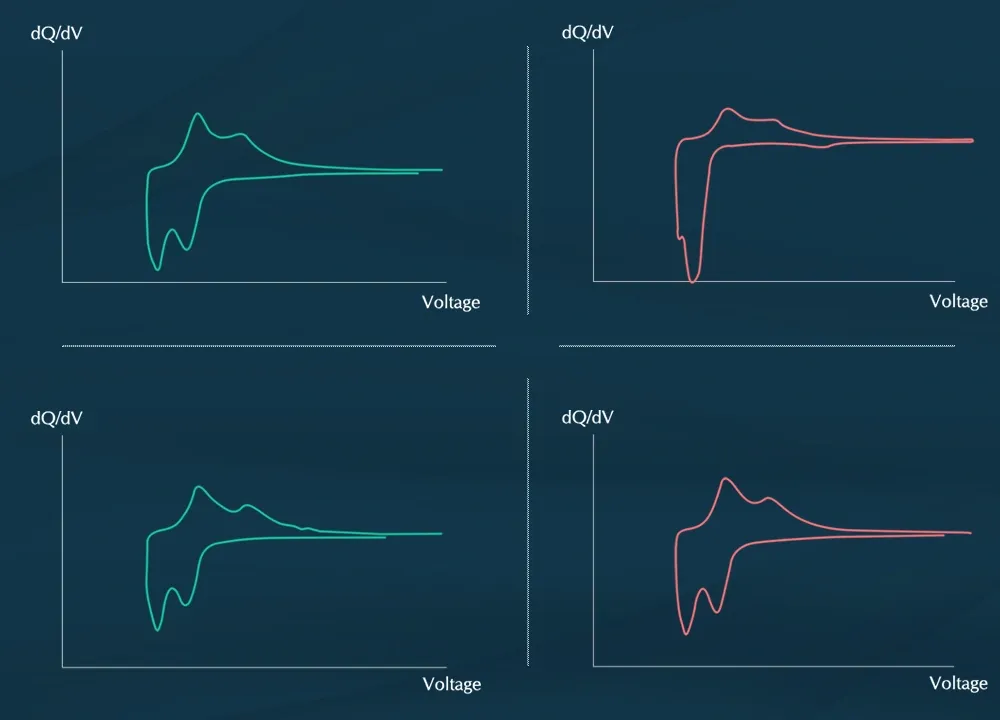

- One-Click Reporting: Export raw data (CSV/Excel) with visualized charts (dQ/dV curves, trend graphs) in unified packages.
- LIMS Connectivity: Seamless integration with LIMS (Laboratory Information Management System) for unified data control.
| Equipment name | PC All-in-One Battery Testing System |
| Model | WHW-200L2-0C-220V-9U-PC |
| Voltage & Curren | 5V100mA |
| Current & Voltage Accuracy | ±0.05% |
| Recording Frequency | 10Hz |
| Current Response Time | ≤1ms |
| Temperature Range | 32°F-140°F (0℃-60℃) |
| Heating Time | 77°F ~ 140°F ≤30min (25℃ ~ 60℃ ≤30min) |
| Cooling Time | 77°F ~ 32°F ≤50min (25℃ ~ 0℃ ≤50min) |
| Temperature Fluctuation | ±0.9°F (±0.5℃) |
| Temperature Deviation | ±1.8°F (±2℃) |
| Number of Channels | 160CH |
| Nominal Content Volume | 100L*2 |
| Product Dimensions | W23.6"× D37.4"× H75.5"(W600mm×D950mm×H1918mm) |
