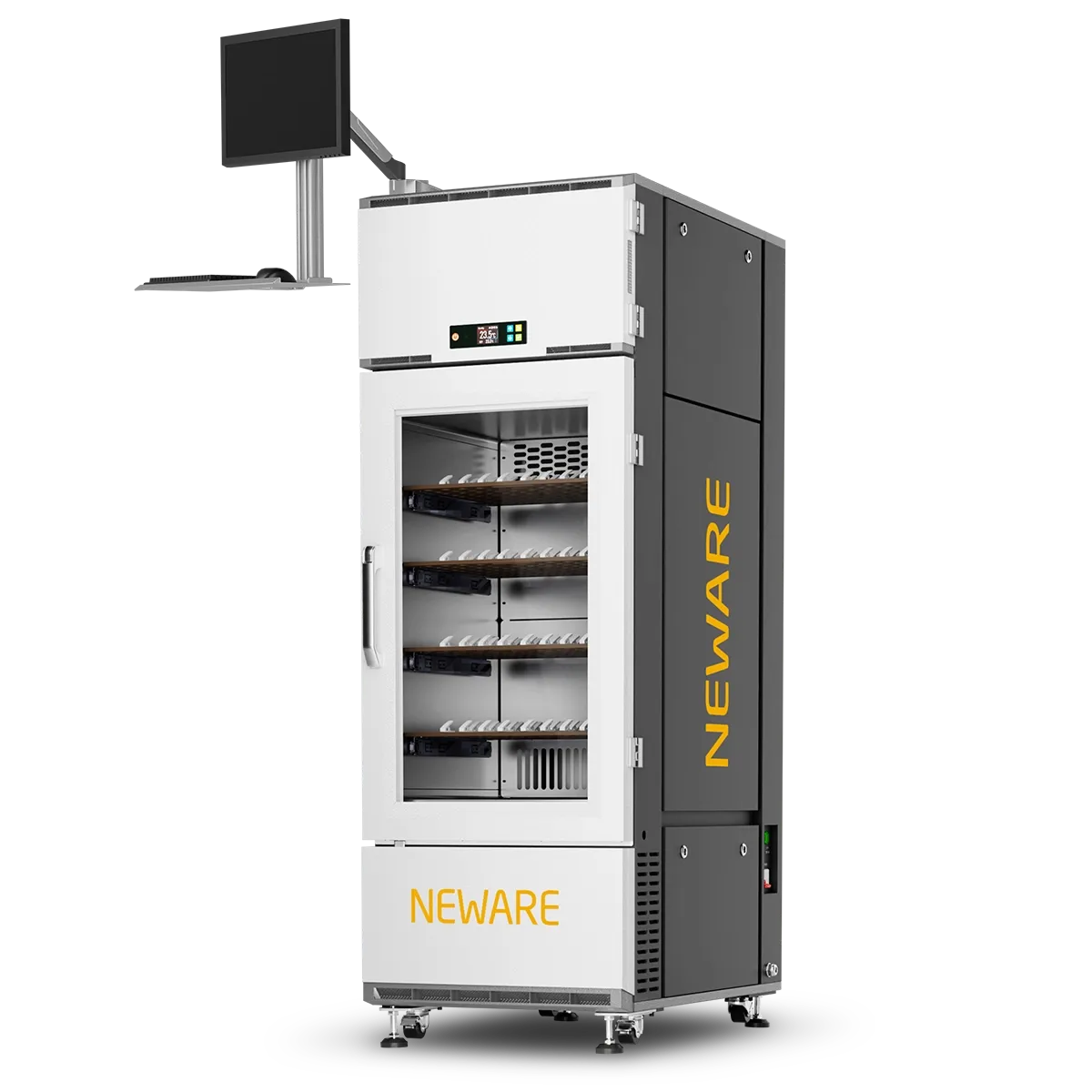

Ultimate control within your fingertips: personalized temperature regulation

Key Specifications

• Current and voltage accuracy: ±0.01% F.S.
• Recording Frequency: 10Hz
• Number of Channels: 160CH
• Temperature Range & Deviation: 32℉ ~ 140℉±3.6℉
• Heating Efficiency: 77℉ ~ 140℉ ≤30min
• Cooling Efficiency: 77℉ ~ 32℉≤50min

WHW-200L-0C-220V-5V100mA-160CH is equipped with advanced processors and powerful computing capabilities, enabling efficient processing of large-scale data and complex computing tasks. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications.

Occupying less area, advocate of spatial aesthetics.

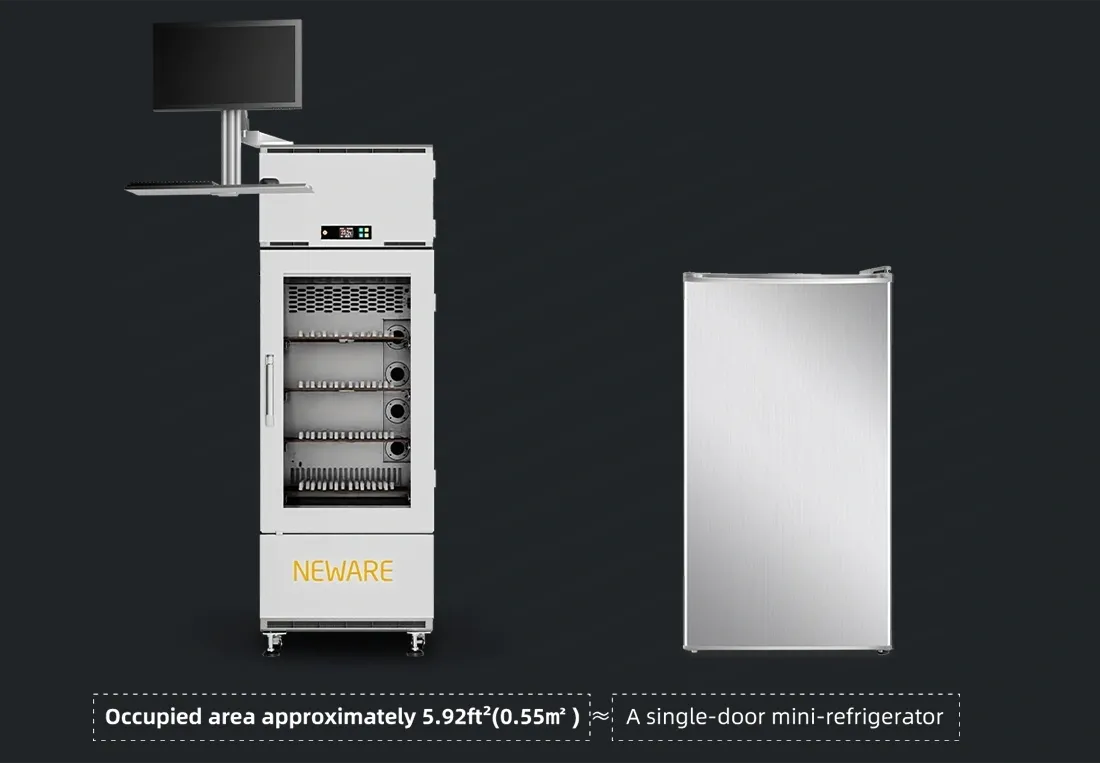

Introducing the new dual-function integrated constant temperature test chamber, featuring a consistent large capacity of 200L, unchanged number of channels, occupying a footprint of approximately 5.92ft²(0.55㎡ ). This upgrade not only saves experimental space but also enhances the aesthetic with a modern and simplistic design.

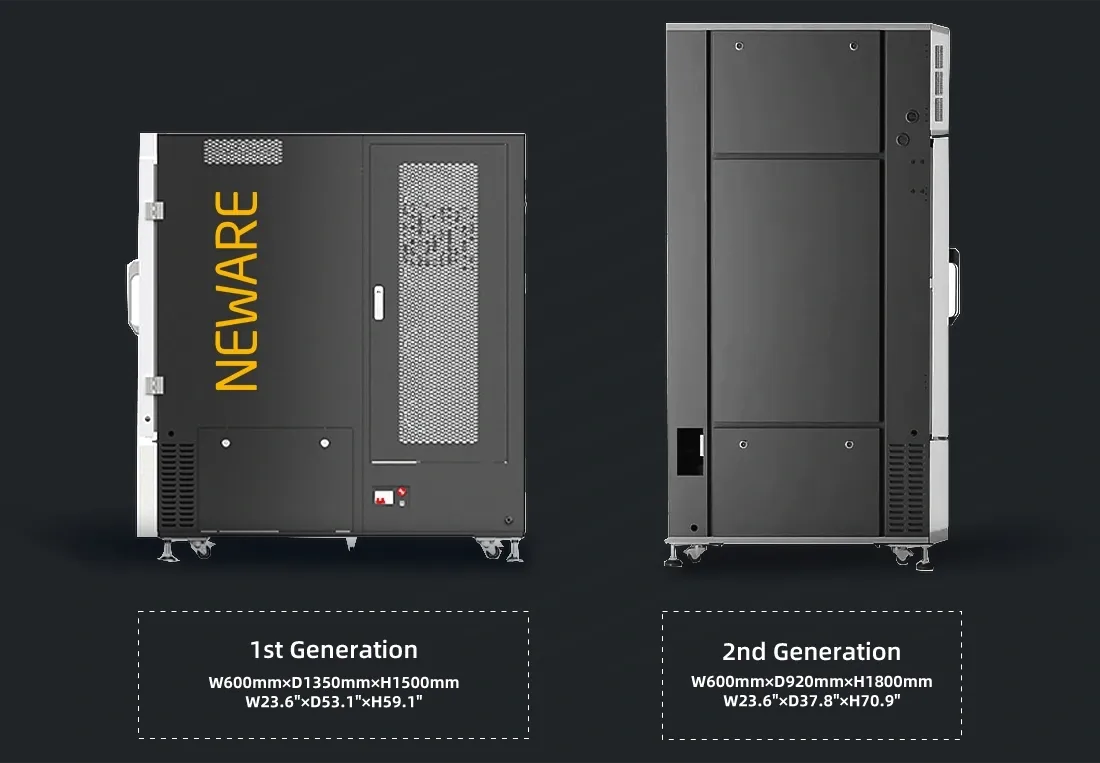

Compared with the previous generation (WHW-200L-0C-220V-5V100mA-160CH), the product has a smaller footprint and can save more laboratory space.

Four-in-one design, simplify and refine.

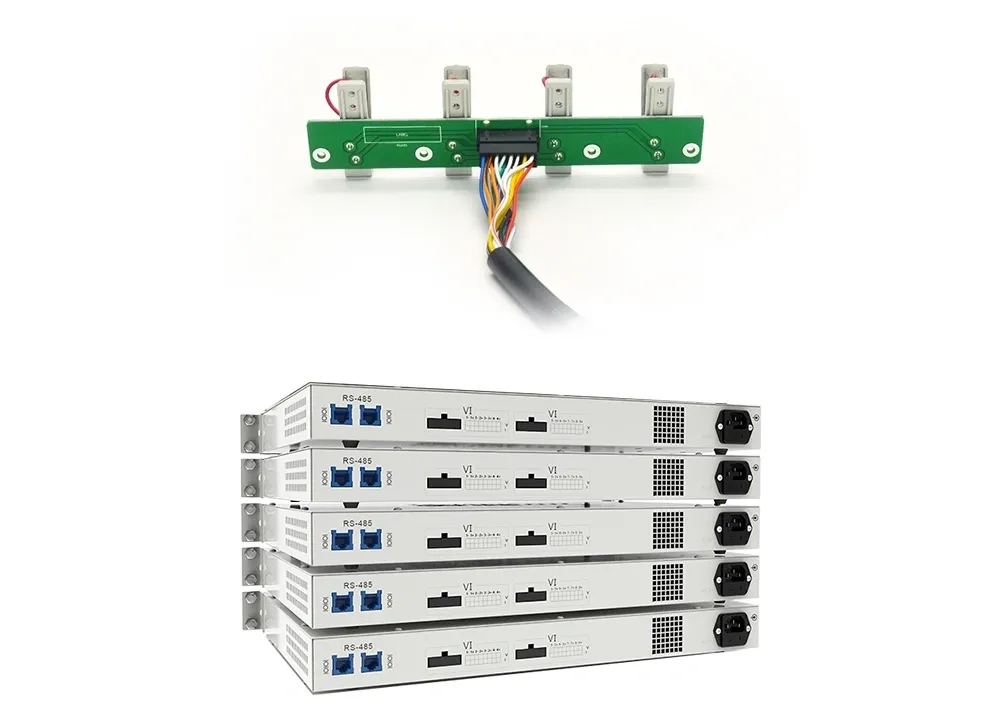

Connect the back of the charging and discharging equipment to the inside of the temperature box. Four channels are connected using a single channel wire, with each unit only requiring 2 wires to reduce the number of channel wires and effectively reduce temperature fluctuations.

Intuitive interface, effortless operation.

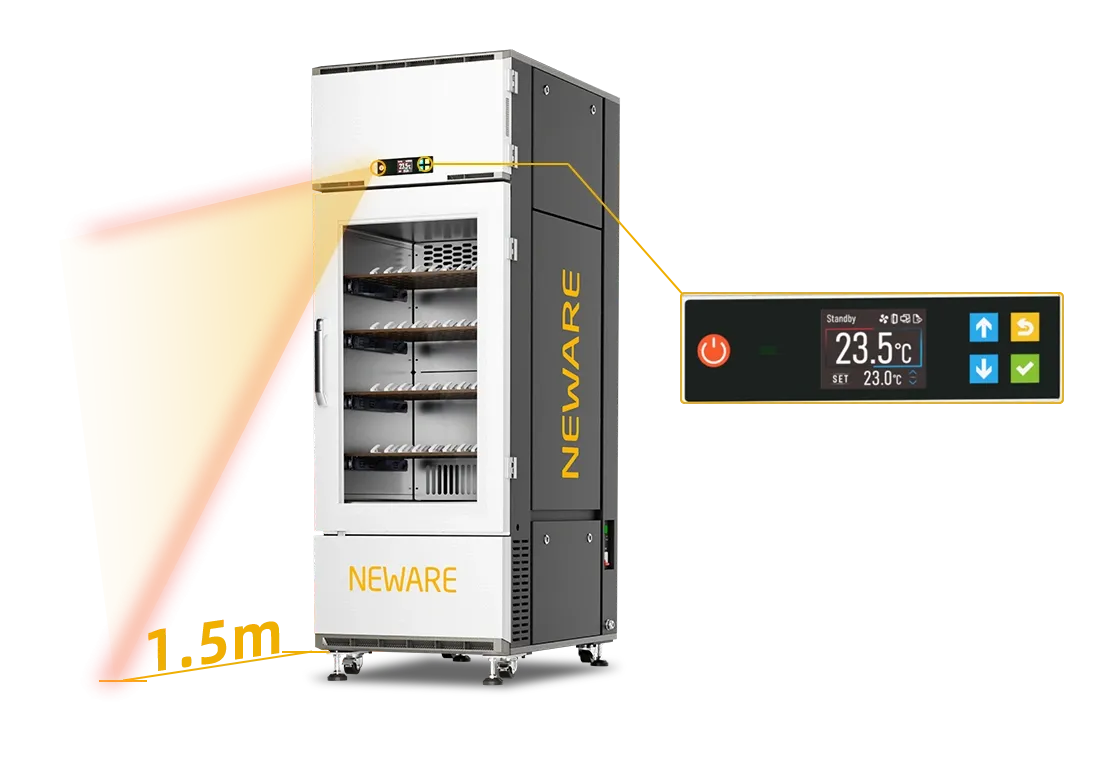

WHW-200L-160CH-B prioritizes user experience and incorporates a touch LCD screen design with a user-friendly graphical interface and flexible configuration options. It features automatic screen wake-up through infrared human body sensing within a 1.5-meter range, allowing users to easily set up and manage the device.

Mastering multiplicity: Simplifying the intricate.

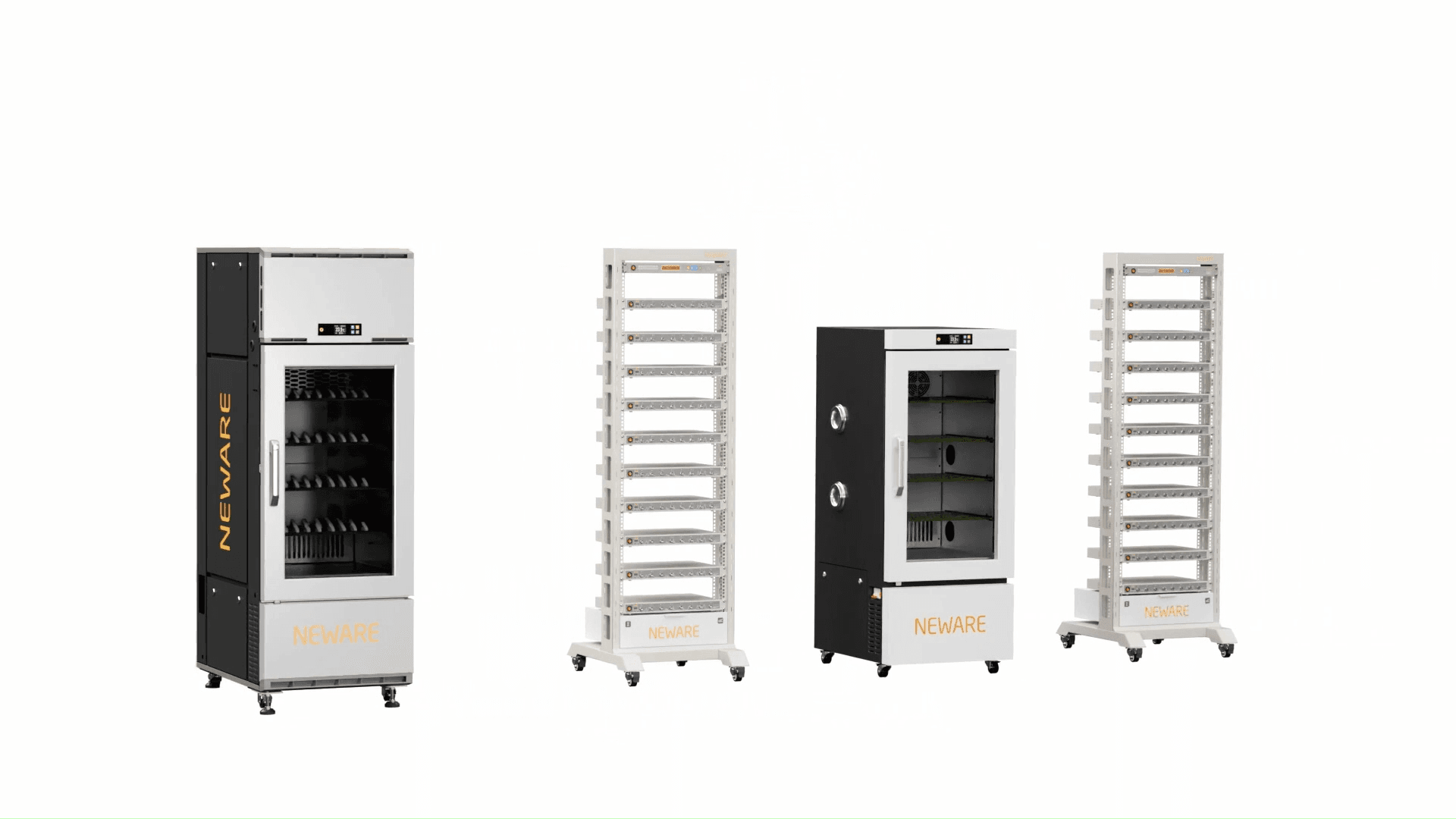

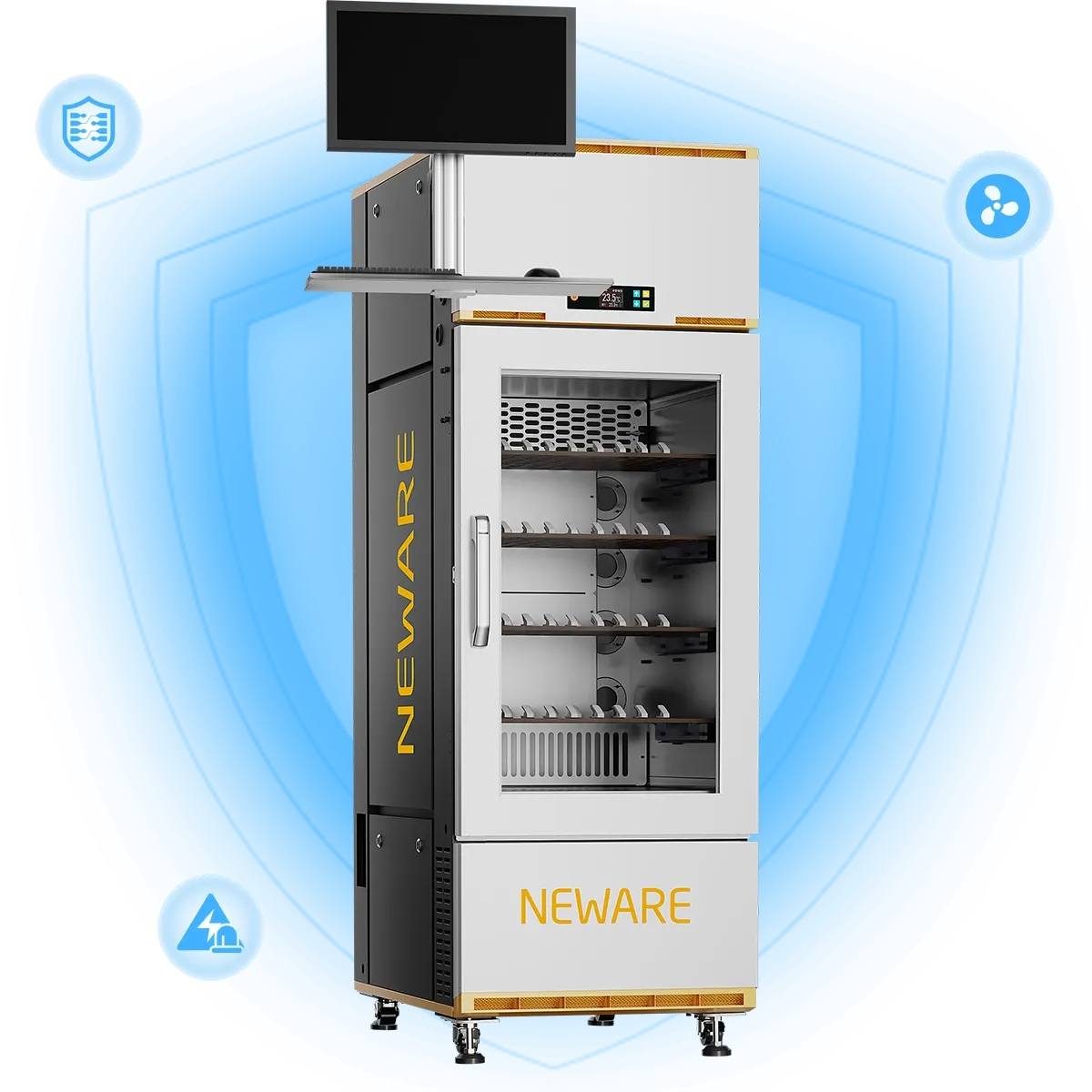

Combining the functionalities of compatible charge-discharge testing equipment and environmental test chambers into one cleverly designed solution, our product maximizes space utilization and enhances equipment efficiency.

Powerful heat dissipation, reliable and stable.

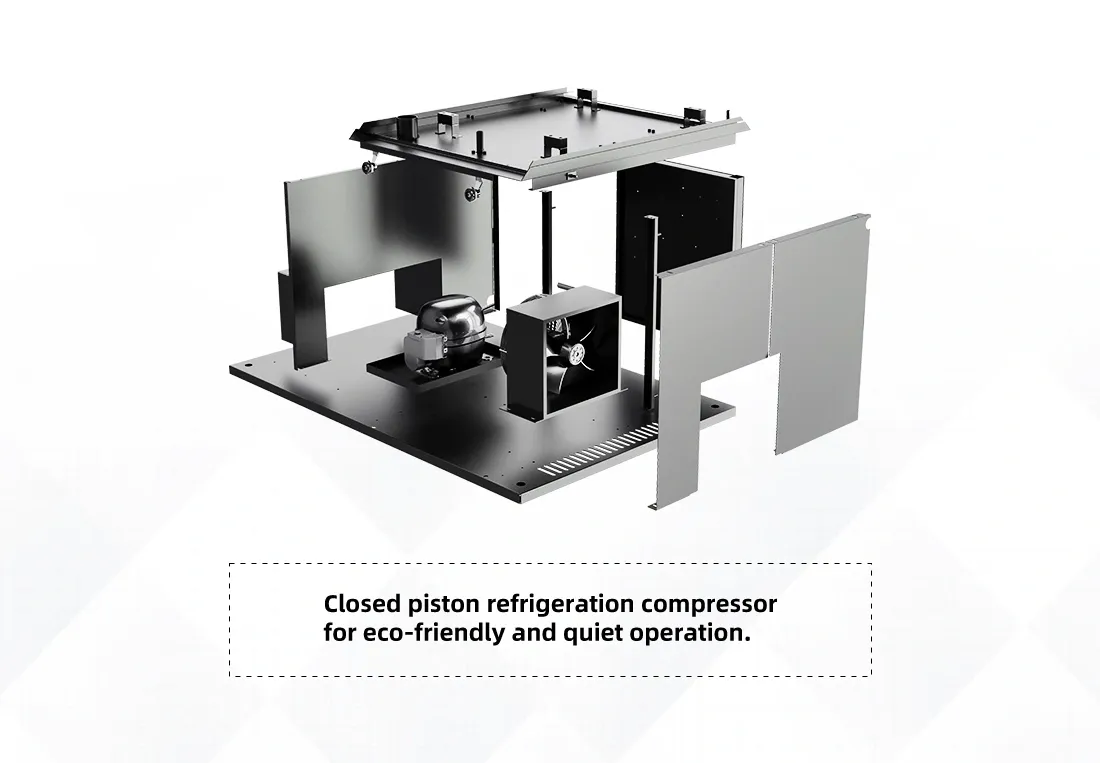

The independently developed temperature control module has reliable performance and excellent temperature control capabilities. The fan ensures uniform airflow and maintains a consistent temperature.

Discover unparalleled testing efficiency with 160 channels.

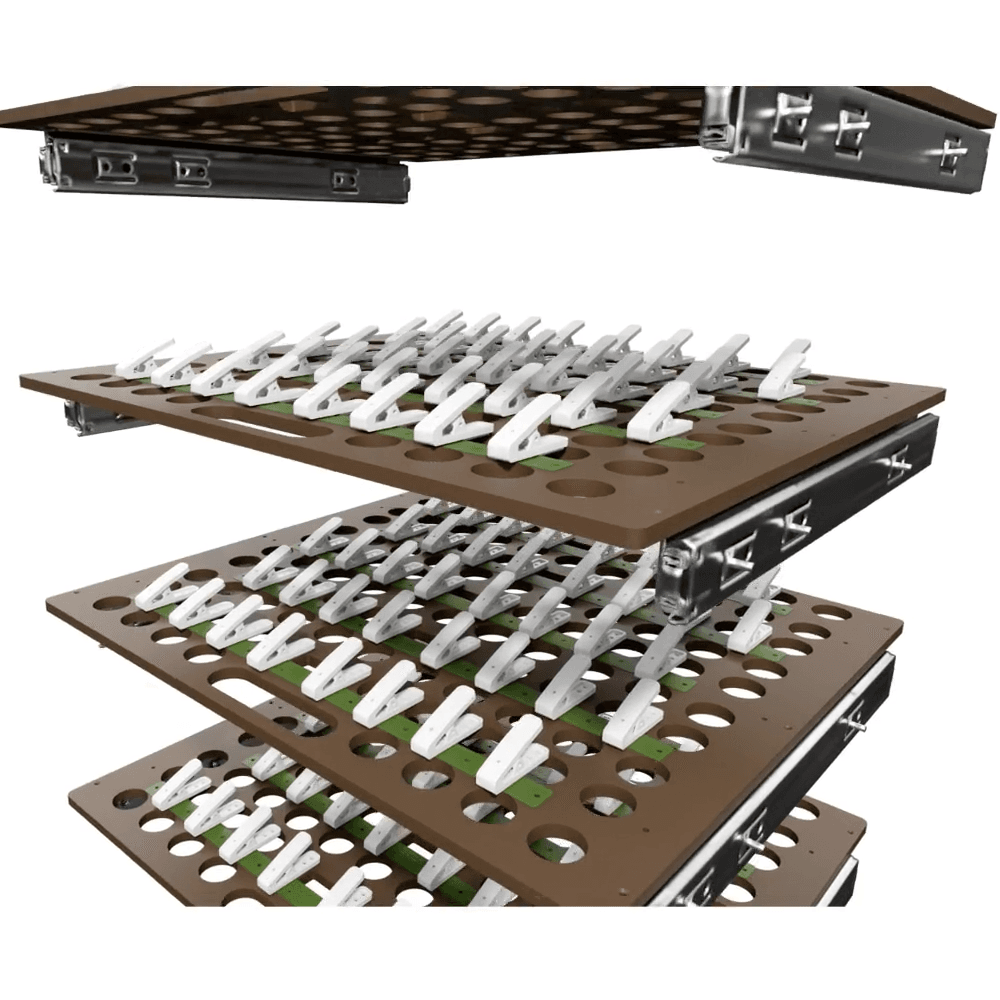

WHW-200L-0C-220V-5V100mA-160CH, 160 channels, is capable of simultaneously processing multiple input and output signals. It can accommodate 4 layers of battery cells, with each layer capable of holding 40 snap-on battery cells (with a maximum current of 100mA per battery). Each layer can bear a weight of up to 10kg.

Perpetual dedication to safety protection.

• Power-down data protection
• Short circuit protection
• Abnormal monitoring of circulating fan operation

Powerful programmability. Meet diverse testing needs.

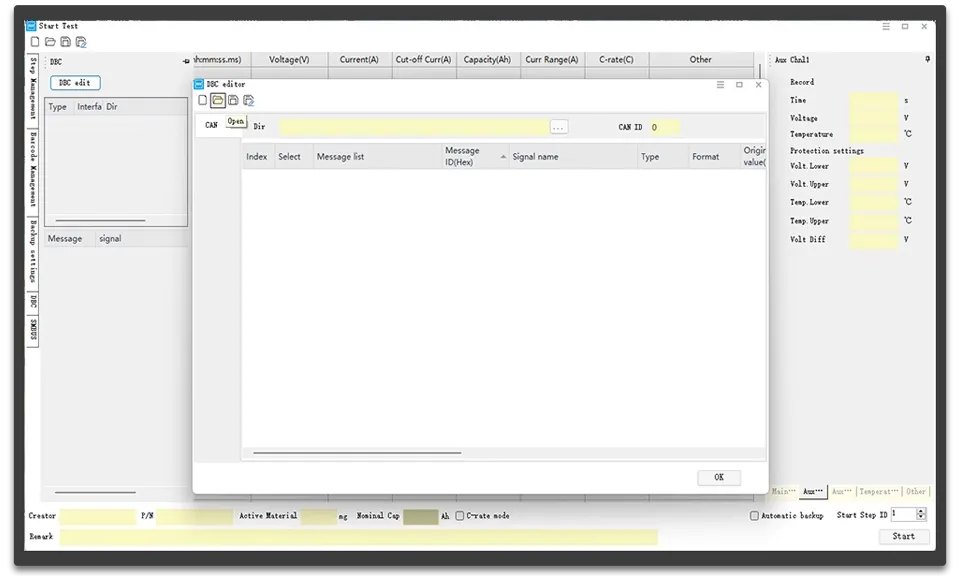

The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.

Extensive peripheral devices.Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
