Wide-range temperature control, high-low temperature battery testing.
WGDW Series High and Low Temperature Test Chamber
Wide-range temperature control, high-low temperature battery testing.
Size doesn't matter when it comes to impact.
| Coin Cells | NEWARE has created a complete set of solutions for laboratory materials research, including Cycle Life Testing, Rate Charging / Discharging Testing, GITT Testing, DCIR Testing, GSM Testing, dQ/dV Differential Capacity Curve Analysis and other functions. This solution caters to the varying levels of accuracy required for battery testing by Material Manufacturers, Universities, and Research Institutes. |
| Pouch Cells | NEWARE has created a complete set of solutions for laboratory materials research, including Cycle Life Testing, Rate Charging / Discharging Testing, GITT Testing, DCIR Testing, GSM Testing, dQ/dV Differential Capacity Curve Analysis and other functions. This solution caters to the varying levels of accuracy required for battery testing by Material Manufacturers, Universities, and Research Institutes. |
| Monitor&Alarm System | 1Smoke alarms, monitors, electronic access control systems, and other devices require batteries with high stability. NEWARE's battery testing solutions can perform comprehensive testing on Coin, Cylindrical, and Pouch batteries, including Cycle Life Testing and Pulse Simulation, to ensure their reliability. |
Temperature magic, steady data harvesting.
- Environment Temperature:41℉~95℉ (5℃~35℃)
- Temperature Range-4/-40/-94℉~302℉ (-20/-40/-70℃ ~ 150℃)
- Temperature Deviation:±3.6℉ (±2℃)
- Temperature Fluctuation:1.8℉ (≤1℃)
- Heating Efficiency:-4℉~302℉(-20℃ ~ 150℃)≤60min、-40℉~302℉(-40℃ ~ 150℃)≤60min、-94℉~302℉(-70℃ ~ 150℃)≤75min
- Cooling Efficiency:68℉~-4℉(20℃ ~ -20℃)≤45min、68℉~-40℉(20℃ ~ -40℃)≤60min、68℉~-94℉(20℃ ~ -70℃)≤75min
The WGDW series of high-low temperature test chambers offers a broad temperature range, with models capable of reaching minimum temperatures of -4°F, -40°F, and -94°F (-20°C, -40°C, and -70°C). The chambers can achieve maximum temperatures up to 150°C, making them suitable for a wide variety of testing requirements.
RAchieve maximum space utilization for optimal performance.

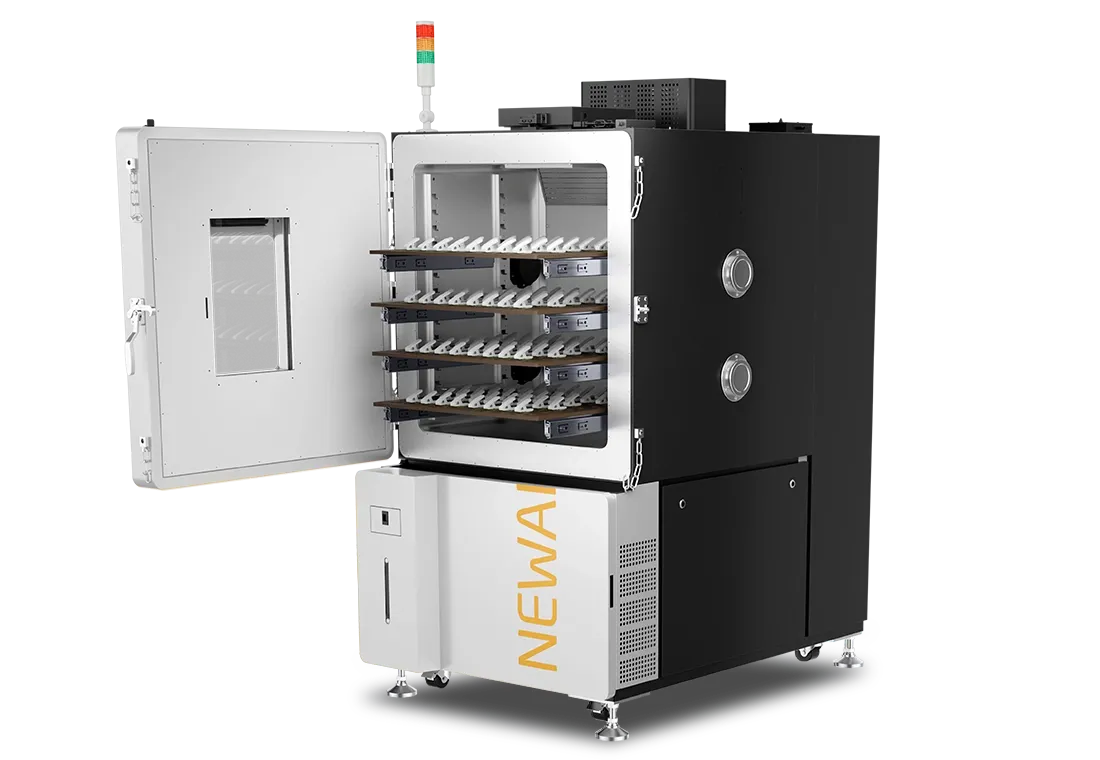

Each shelf has 8 channels, and the model of 225L can accommodate up to 4 shelves, allowing a total of 160 prismatic cells (the actual number may vary based on the size of the battery).
Powerful heat dissipation for optimal stability.

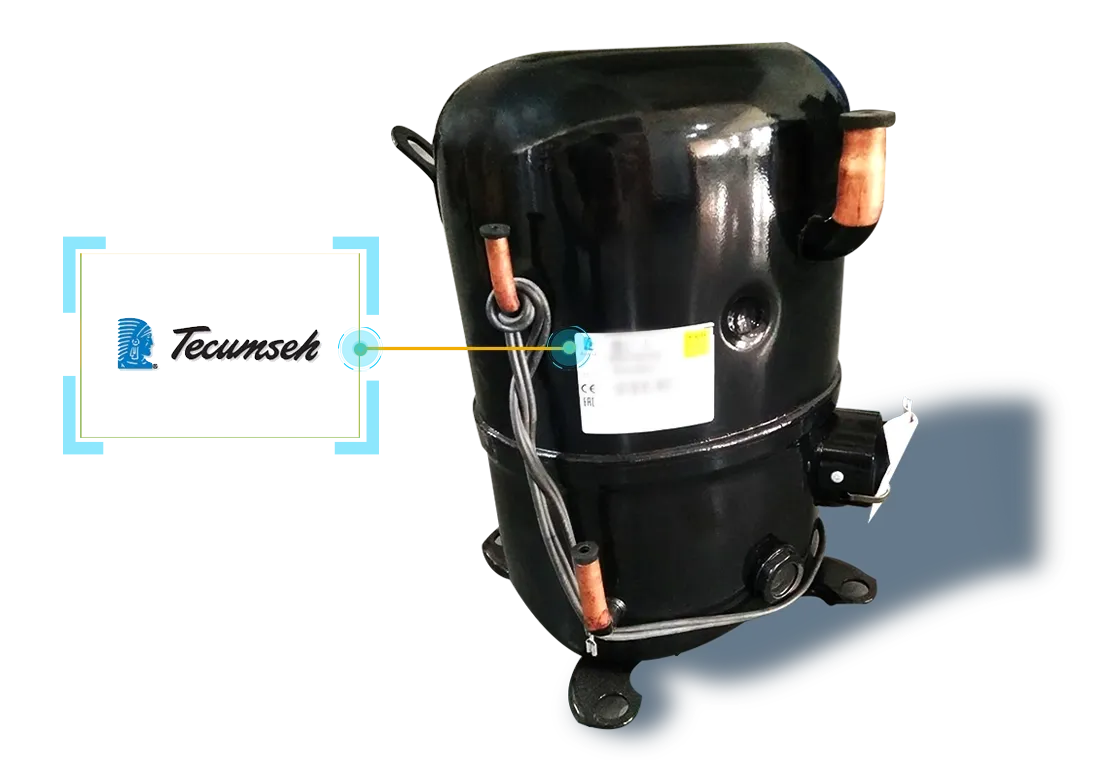

The equipment adopts a fully enclosed compressor imported from Europe, which operates with low noise and maintains excellent performance and stability during long-term operation.

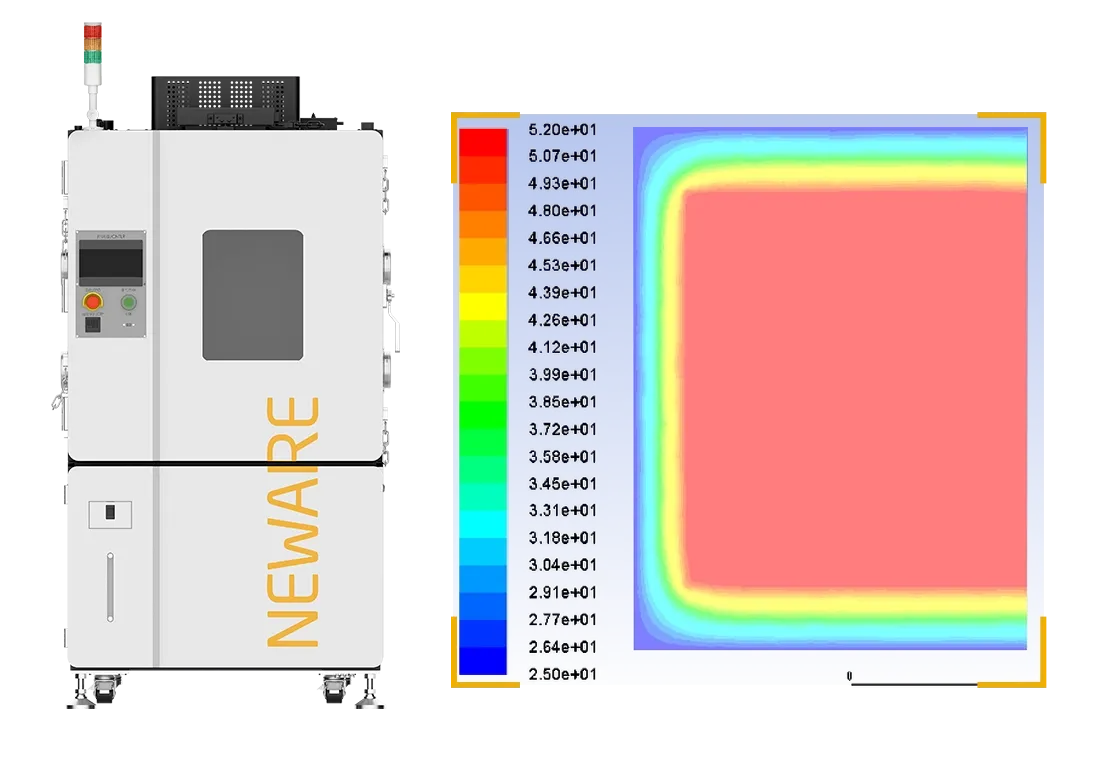

The device utilizes PID calculation to automatically control the output of the heater based on the set temperature value, ensuring rapid and efficient attainment of dynamic equilibrium in the temperature chamber. Moreover, high-quality insulation materials are employed to efficiently stabilize the thermal environment.
Intuitive interface, effortless operation.

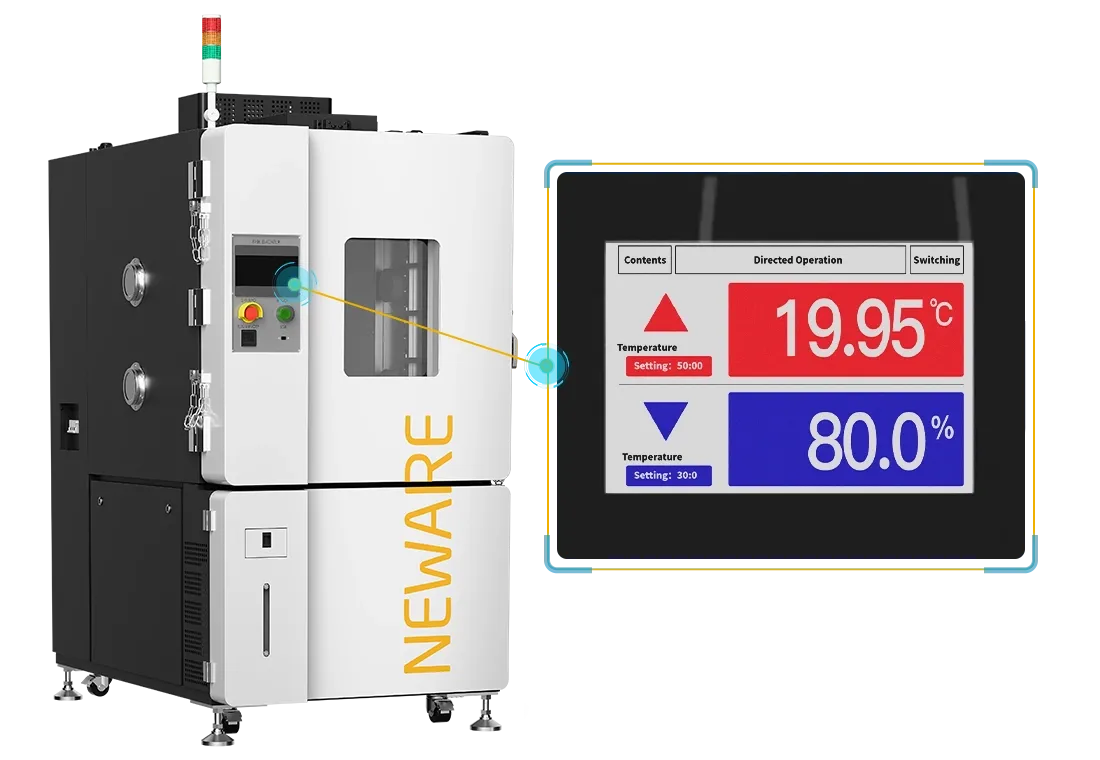

WGDW series focuses on user experience, featuring a large-sized high-definition touchscreen for easy operation and programming. It comes standard with an Ethernet (RJ45) communication interface.
Refined temperature control for long-lasting insulation.
The exterior wall material is made of high-quality cold-pressed steel plate, and the insulation structure consists of a 100mm insulation layer composed of rigid polyurethane foam and glass wool. This insulation layer effectively isolates the internal and external environments, preventing heat exchange and keeping temperature fluctuations within the range of ≤1.8℉ (1℃).
Powerful computational capabilities. Meet diverse testing needs.

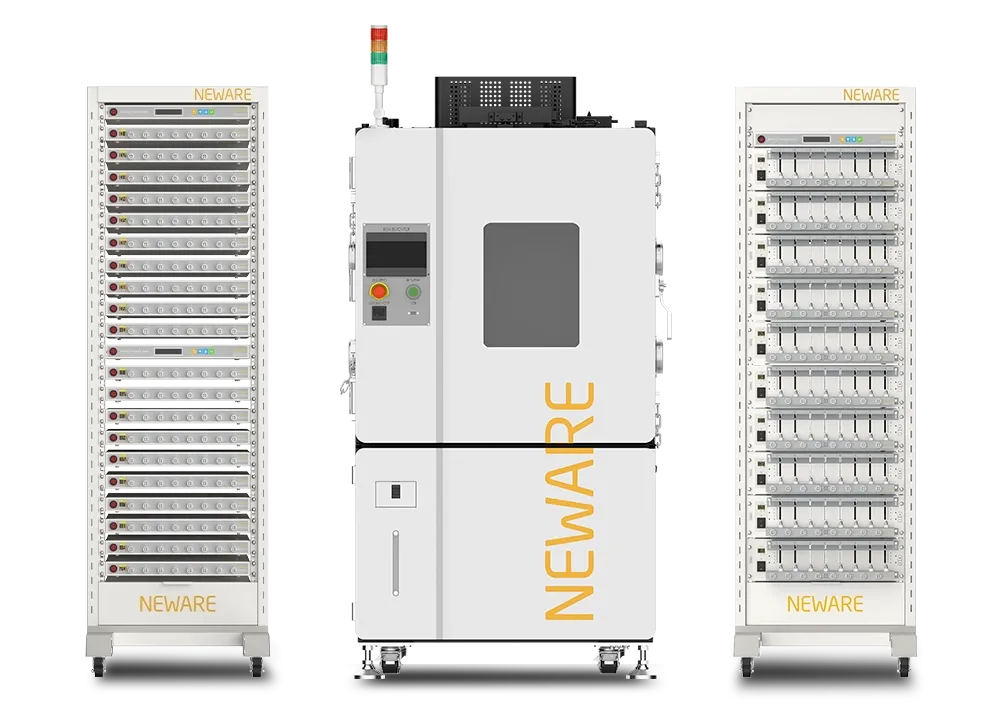

Neware's battery charge-discharge testing system achieves integrated operation and collaborative work through the Newway BTS supervisory control system, maximizing the functionality of battery characteristics.

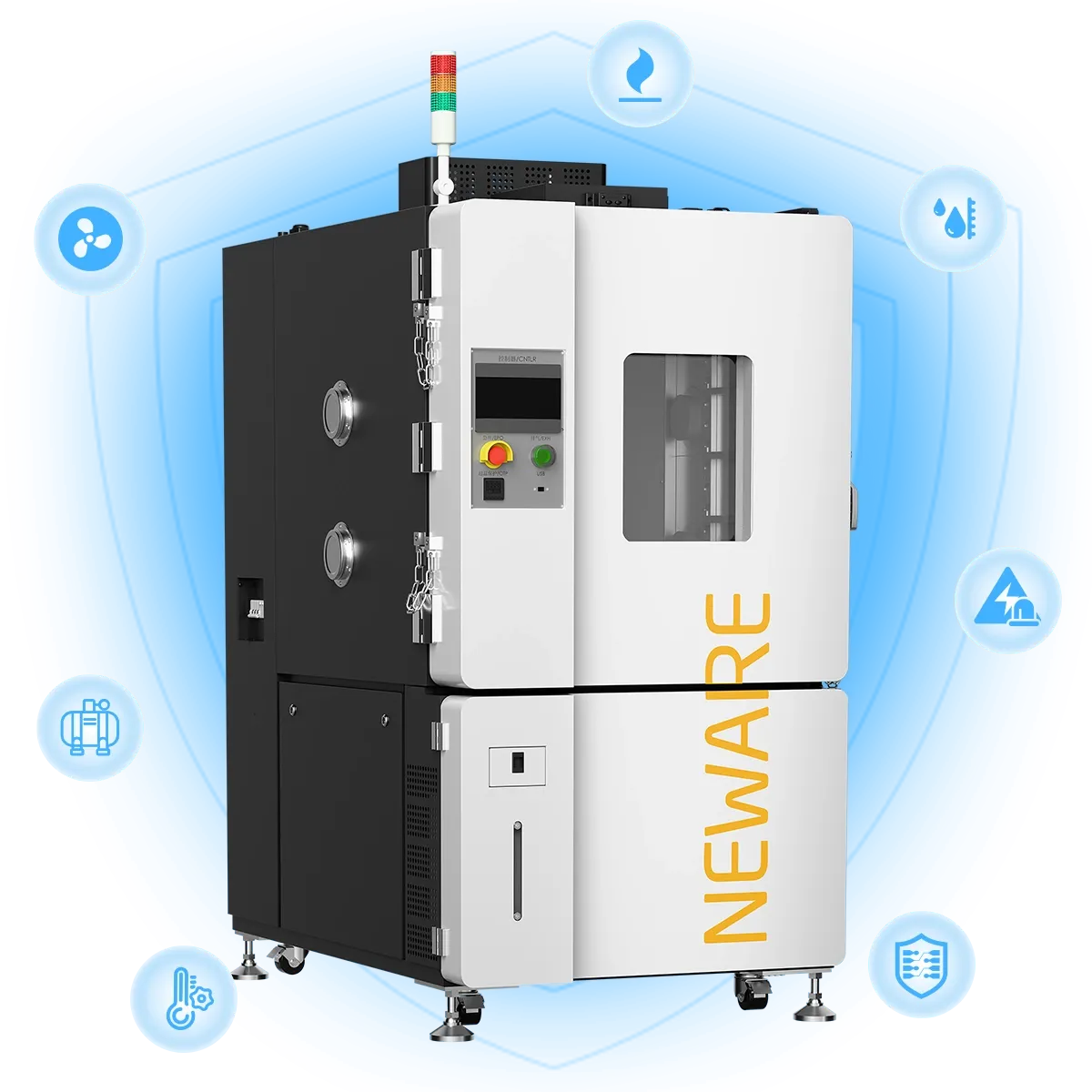

Perpetual dedication to safety protection.
- Overtemperature Protection
- Electrical protection
- Compressor Overpressure and Overload Protection
- Fan Overload Protection
- Humidifier Dry Burn Protection
- Lack of Water Protection
- Leakage Protection
- Short Circuit Protection
Powerful programmability. Meet diverse testing needs.
The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.
| Equipment name | WGDW Series High and Low Temperature Test Chamber |
| Capacity: 150L | |
| Internal Size | 19.7"×19.7"×23.6"(500mm×500mm×600mm) |
| External Size | 29.5"×51.2"×68.9"(750mm×1300mm×1750mm) |
| Heating/Cooling Efficiency | -4℉ ~ 302℉(-20℃ ~ 150℃)≤60min 68℉ ~ -4℉(20℃ ~ -20℃)≤45min |
| Capacity: 225L | |
| Internal Size | 23.6"×19.7"×29.5"(600mm×500mm×750mm) |
| External Size | 33.5"×51.2"×72.8"(850mm×1300mm×1850mm) |
| Heating/Cooling Efficiency | -40℉ ~ 302℉(-40℃ ~ 150℃)≤60min 68℉ ~ -40℉(20℃ ~ -40℃)≤60min |
| Capacity: 408L | |
| Internal Size | 31.5"×23.6"×33.5"(800mm×600mm×850mm) |
| External Size | 41.3"×55.1"×76.8"(1050mm×1400mm×1950mm) |
| Heating/Cooling Efficiency | -40℉ ~ 302℉(-40℃ ~ 150℃)≤60min 68℉ ~ -40℉(20℃ ~ -40℃)≤60min |
| Capacity: 800L | |
| Internal Size | 39.4"×31.5"×39.4"(1000mm×800mm×1000mm) |
| External Size | 49.2"×63.0"×82.7"(1250mm×1600mm×2100mm) |
| Heating/Cooling Efficiency | -94℉ ~ 302℉(-70℃ ~ 150℃)≤60min 68℉ ~ -94℉(20℃ ~ -70℃)≤75min |
| Capacity: 1000L | |
| Internal Size | 39.4"×39.4"×39.4"(1000mm×1000mm×1000mm) |
| External Size | 49.2"×70.9"×82.7"(1250mm×1800mm×2100mm) |
| Heating/Cooling Efficiency | -94℉ ~ 302℉(-70℃ ~ 150℃)≤60min 68℉ ~ -94℉(20℃ ~ -70℃)≤75min |
