Tiny currents can be lightly captured.

• Consumer Electronics: NEWARE offers a range of testing solutions for Cylindrical and Pouch batteries used in 3C digital products such as smartphones, tablets, and laptops. The equipment is designed with modular components and boasts high-performance features such as rapid response times, exceptional precision, and high sampling rates. Optional SMBus communication functionality is also available, making it a suitable choice for Battery Manufacturers, 3C Manufacturers, Research Institutions, and other organizations with complex testing needs.
• Coin CellsNEWARE has created a complete set of solutions for laboratory materials research, including Cycle Life Testing, Rate Charging / Discharging Testing, GITT Testing, DCIR Testing, GSM Testing, dQ/dV Differential Capacity Curve Analysis and other functions. This solution caters to the varying levels of accuracy required for battery testing by Material Manufacturers, Universities, and Research Institutes.
• Ponch Cells:NEWARE has created a complete set of solutions for laboratory materials research, including Cycle Life Testing, Rate Charging / Discharging Testing, GITT Testing, DCIR Testing, GSM Testing, dQ/dV Differential Capacity Curve Analysis and other functions. This solution caters to the varying levels of accuracy required for battery testing by Material Manufacturers, Universities, and Research Institutes.

Seizing the fleeting changes, distinguishing within millimeters.

*Other models can be customized according to voltage and current requirements.

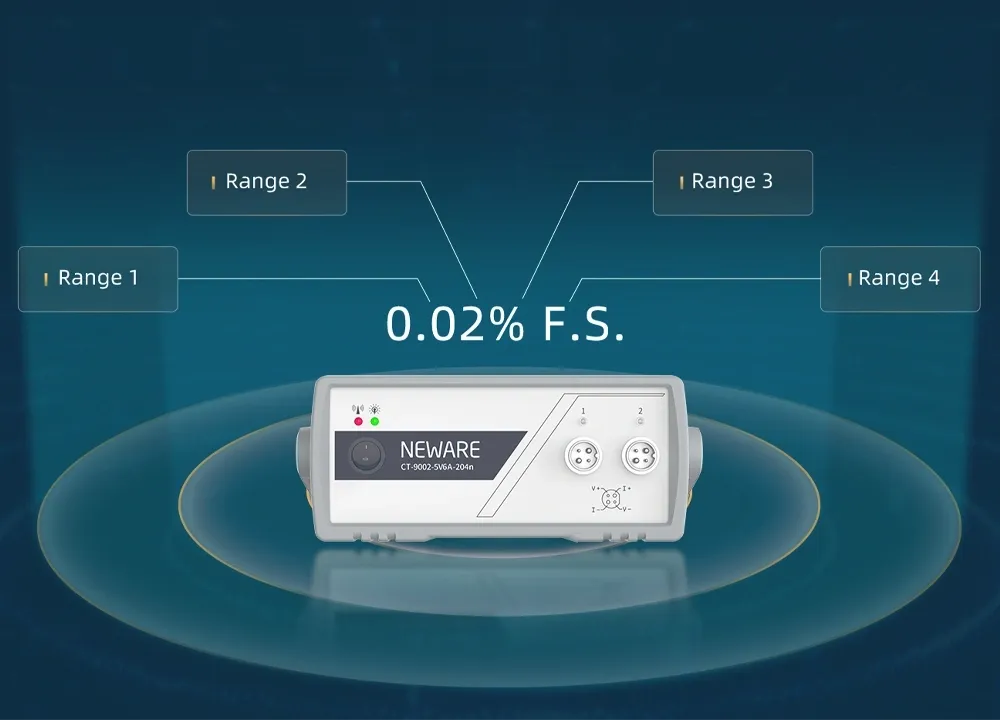

4-Range, precision to the utmost.

4 current ranges of 0.1μA~180μA, 180μA~6mA , 6mA~180mA , 180mA~6A can be selected respectively to realize the controllable accuracy of small current in small range.

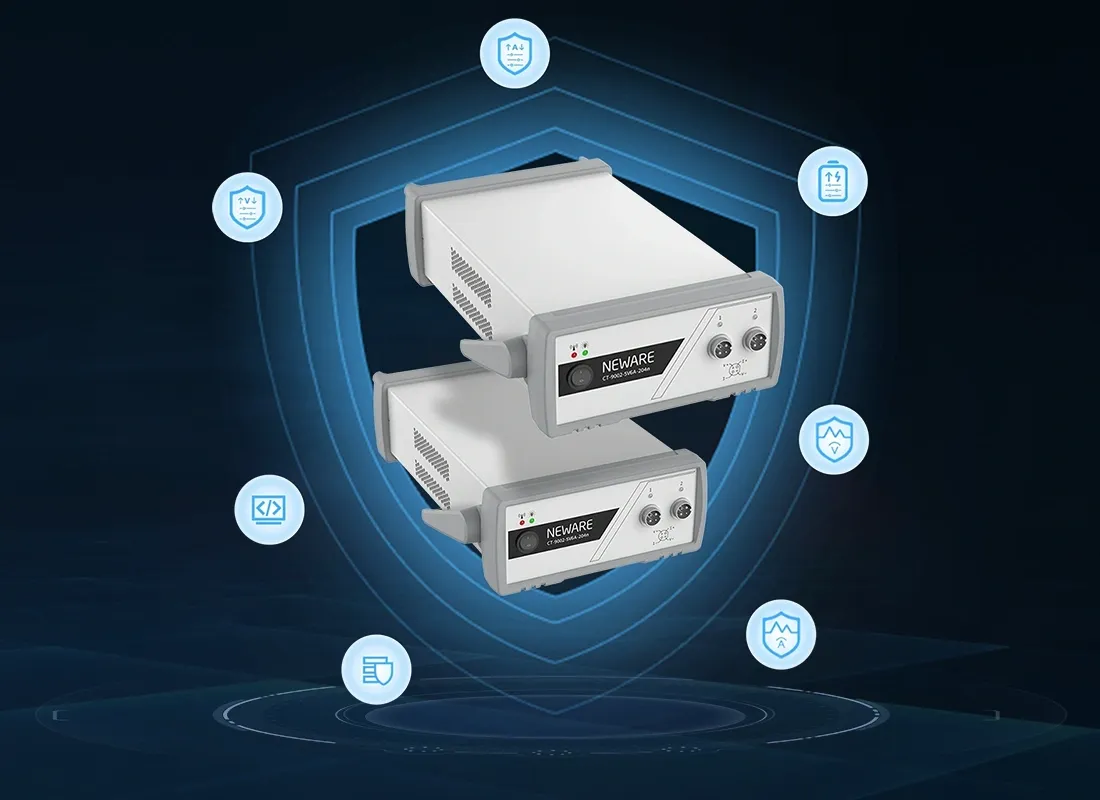

Safety protection keeps machines working longer.

• Discharge Data Protection

• Offline Testing Function

• Voltage Upper Limit Setting

• Voltage Lower Limit Setting

• Current Upper Limit Setting

• Current Lower Limit Setting

• Capacity Upper Limit Setting

• Voltage Fluctuation Protection

• Current Fluctuation Protection

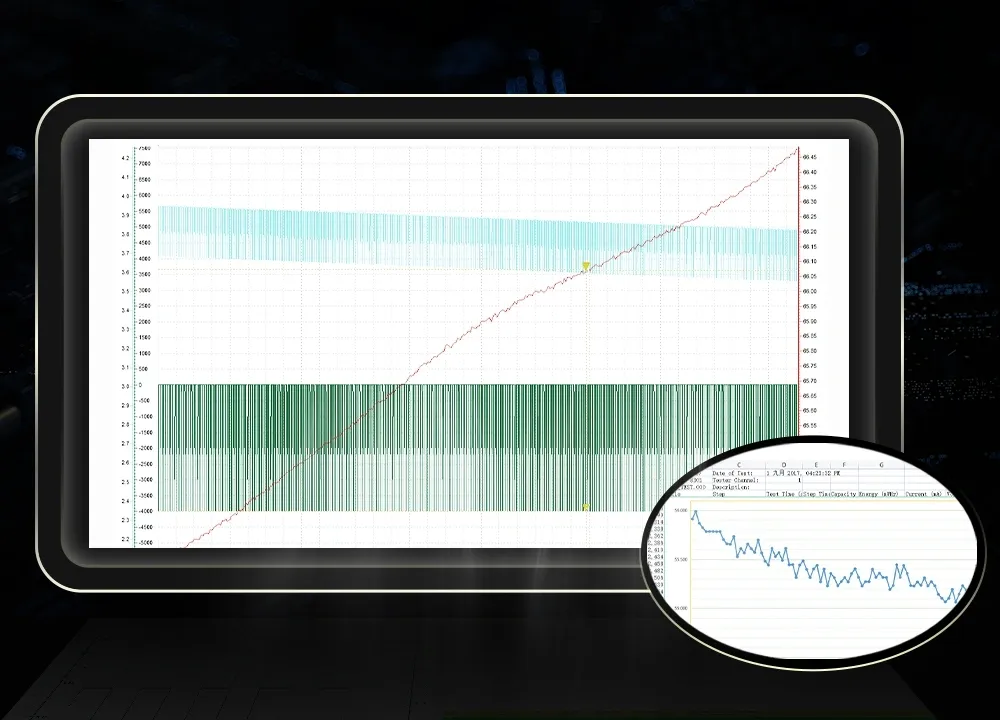

High precision sampling, perceive every small fluctuation.

Up to 1000Hz data recording frequency

Compared to other modules of NEWARE testers, the CT-9002 series has a higher recording frequency up to 1000Hz. The IEC standard DCIR function of the CT-9002 is also based on the high frequency data set, allowing more DCIR values to be obtained in the same time range.

A multitude of functionalities, accomplishing the testing of new species.

Support Cycle Life Test, Rate Charging / Discharging Test, DCIR Test, dQ/dV Differential Capacity Curve Test, CV Test. Designed for battery research in universities, research institutes and etc.

Powerful programmability, meet diverse testing needs.

The equipment has comprehensive functions, supports SMBus communication, and easily meets various needs.

• Simulation test support: simulate the actual battery pack testing environment to verify the battery pack performance under real using. It supports loading maximum 100W rows of changing data.

• Discharge to 0V * : forced discharge of the battery pack to 0V, suitable for various safety tests, destructive tests and other tests of the battery pack.(*This function is optional.)

• Conditions switches: battery test steps need to be estimated for multiple conditions according to different operations during test applications; condition switches meet requirements for multi-exit programming types. Each step supports 5 condition switches; support multi-exits, go to any steps, achieve more flexible process control.
