Tiny currents can be lightly captured.

• Consumer Electronics: NEWARE offers a range of testing solutions for Cylindrical and Pouch batteries used in 3C digital products such as smartphones, tablets, and laptops. The equipment is designed with modular components and boasts high-performance features such as rapid response times, exceptional precision, and high sampling rates. Optional SMBus communication functionality is also available, making it a suitable choice for Battery Manufacturers, 3C Manufacturers, Research Institutions, and other organizations with complex testing needs.
• Coin CellsNEWARE has created a complete set of solutions for laboratory materials research, including Cycle Life Testing, Rate Charging / Discharging Testing, GITT Testing, DCIR Testing, GSM Testing, dQ/dV Differential Capacity Curve Analysis and other functions. This solution caters to the varying levels of accuracy required for battery testing by Material Manufacturers, Universities, and Research Institutes.
• Ponch Cells:NEWARE has created a complete set of solutions for laboratory materials research, including Cycle Life Testing, Rate Charging / Discharging Testing, GITT Testing, DCIR Testing, GSM Testing, dQ/dV Differential Capacity Curve Analysis and other functions. This solution caters to the varying levels of accuracy required for battery testing by Material Manufacturers, Universities, and Research Institutes.

Seizing the fleeting changes. Distinguishing within millimeters.

• Voltage Accuracy:±0.02% F.S.
• Recording Frequency:1000Hz
• Current Response Time:≤100μs
• Minimum Pulse Width:400μs
• Resolution Ratio AD:16Bit
• Off-Line Test:1GB

High sampling accuracy, fast response time, high control accuracy and wide measurement range.

*Other models can be customized according to voltage and current requirements.

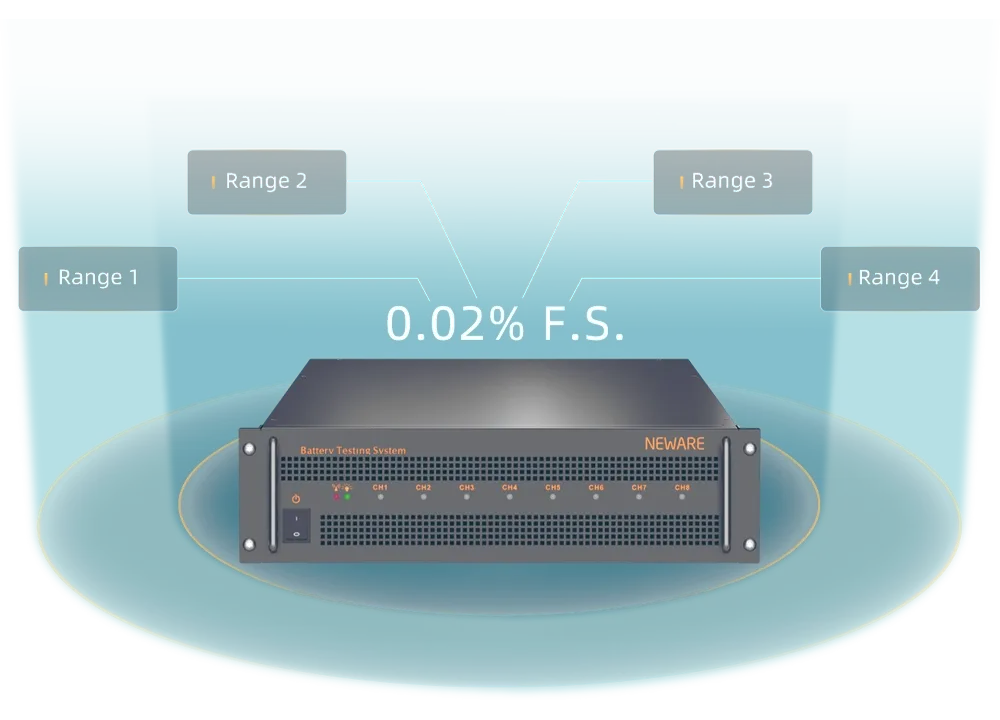

4-Range, precision to the utmost.

4 current ranges from 0.015mA ~ 15mA, 15mA ~ 150mA, 150mA ~ 1500mA, 1500mA ~ 15A can be selected respectively to realize the controllable accuracy of small current in small range.

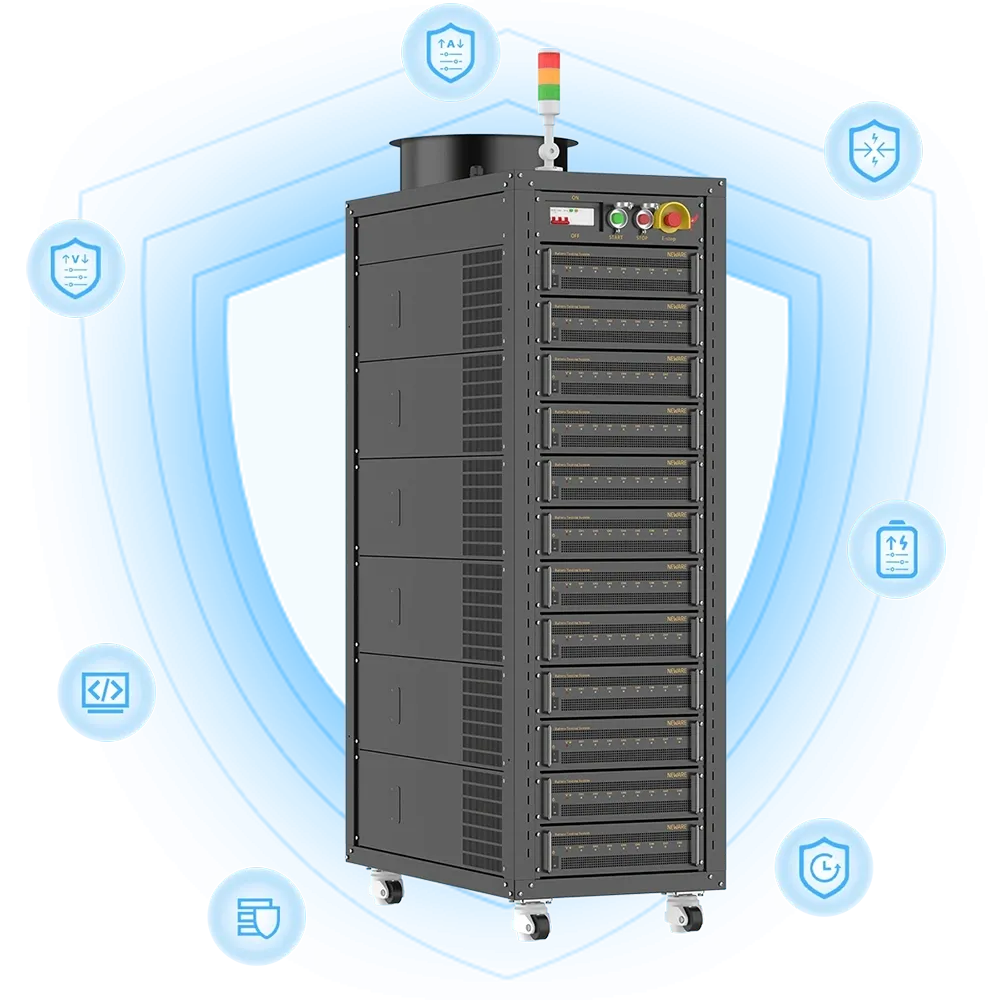

Safety protection keeps machines working longer.

• Discharge Data Protection
• Offline Testing Function
• Voltage Upper Limit Setting
• Voltage Lower Limit Setting
• Current Upper Limit Setting
• Current Lower Limit Setting
• Capacity Upper Limit Setting
• Voltage Fluctuation Protection
• Current Fluctuation Protection

High precision sampling. Perceive every small fluctuation.

Up to 1000Hz data recording frequency Compared to other modules of NEWARE testers, the CT-9000 series has a higher recording frequency up to 1000Hz. The IEC standard DCIR function of the CT-9000 is also based on the high frequency data set, allowing more DCIR values to be obtained in the same time range.

A multitude of functionalities. Accomplishing the testing of new species.

• Pulse simulation test
• Cycle life test
• Rate Charging / Discharging Test
• DCIR test
• dQ/dV differential capacity curve

Support Differential Capacity Curve Test, designed for battery research in Universities, Research Institutes and etc.

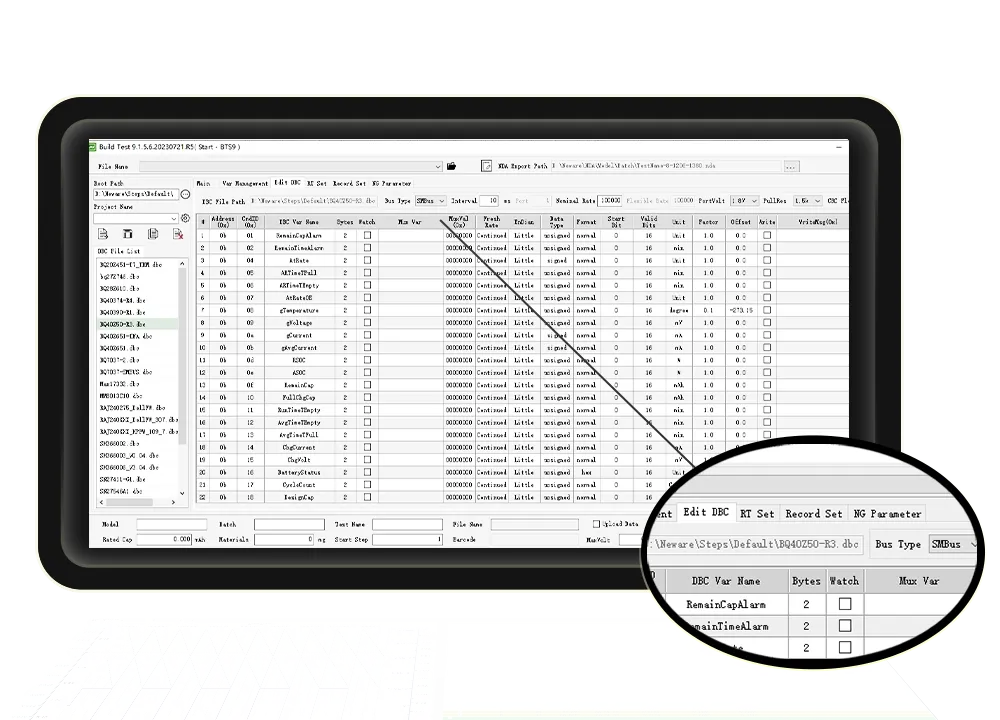

Powerful programmability. Meet diverse testing needs.

The equipment has comprehensive functions, supports SMBus communication, and easily meets various needs.

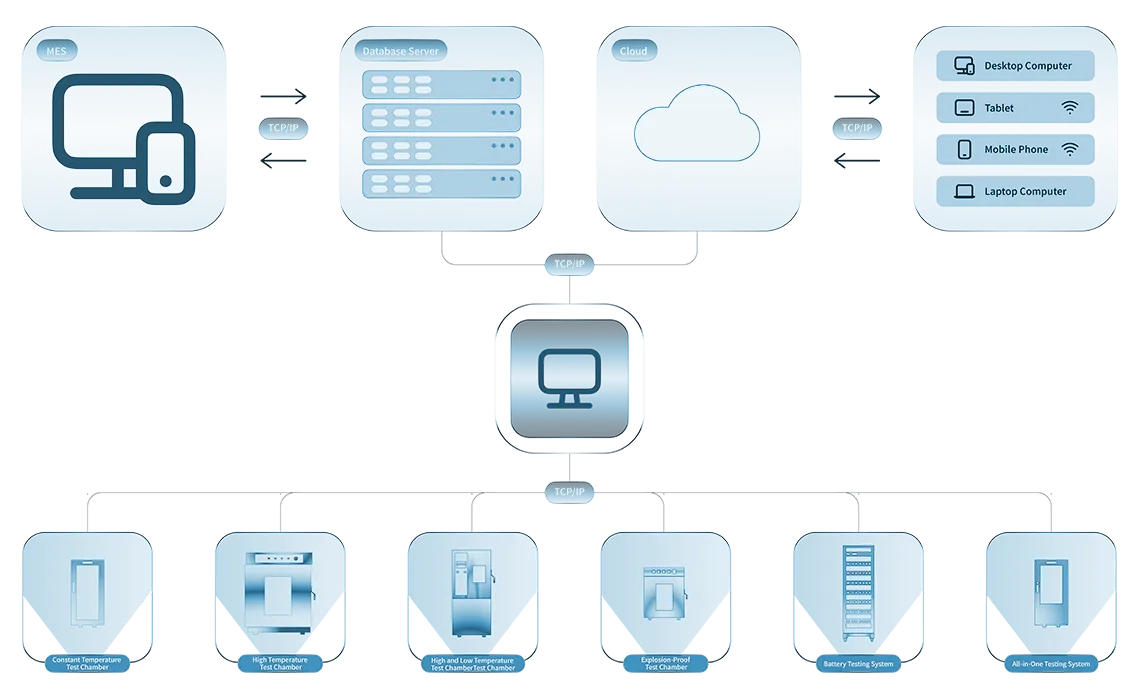

xtensive peripheral devices. Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental TestChambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
