CE-6000 Module Testing System
CE-6000 Module Testing System is designed for high-power-density battery module testing, provide efficient and accurate testing, such as SOC, DOO, PCIR test.
Testing is the path to extraordinary achievements.
Electric Tools
NEWARE offers comprehensive battery testing solutions for both household and industrial electric tools, providing tailored and diverse options based on usage scenarios to ensure optimal battery performance.
Electric Bicycles|Electric Motorcycles
Electric Hoverboard, electric scooters, e bikes, and electric motorcycles are changing the way people travel, with the development of battery technology being at the core of this transformation. The main issues faced by electric bicycle batteries include battery cost, range, the popularity of charging infrastructure, thermal management of batteries, and safety. As battery technology continues to advance, it provides more reliable power support for these intelligent devices.
Electric Vehicles
NEWARE provides turnkey solutions for Cell, Module, and Pack batteries testing, offering a range of functions such as Cycle Life Testing, HPPC Testing, and Simulation Testing. The equipment is equipped with an energy feedback feature, which can feed back the residual battery discharge energy to the internal grid, meeting the testing needs of Battery Manufacturers, Electric Vehicle Manufacturers, and Energy Storage Companies.
Communication Energe Storage
NEWARE is dedicated to delivering complete energy storage battery solutions that encompass a wide range of applications, including backup power supplies, communication base stations, and photovoltaic / wind power stations. Equipped with advanced software functionality, our solutions can tackle complex testing requirements with ease.
Electric Energe Storage
NEWARE is dedicated to delivering complete energy storage battery solutions that encompass a wide range of applications, including backup power supplies, communication base stations, and photovoltaic / wind power stations. Equipped with advanced software functionality, our solutions can tackle complex testing requirements with ease.
Modular power units that adapt to change.
| Voltage Accuracy: | ±0.02% F.S. |
| Current Accuracy: | ±0.05% F.S. |
| Recording Frequency: | 100Hz |
| Minimum Pulse Width: | 100ms |
| Current Response Time: | (10% F.S. ~ 90% F.S.)≤3ms |
| Current Conversion Time: | (-90% F.S. ~ 90% F.S.) |
AC/DC and DC/DC dual-stage high-frequency isolation modular design, combined with low temperature drift and high-performance multi-channel 24-bit analog-to-digital converter chip, the steady-state accuracy is higher than that of traditional equipment.
| Voltage | Current | ||||||
| 20V≤V≤60V | 60V | 120A | 240A | 480A | 960A | 1200A | - |
| 60V≤V≤120V | 50V | 100A | 200A | 400A | 600A | 800A | 1000A |
| 120V≤V≤200V | 50V | 100A | 200A | 300A | 400A | 500A | - |
*Other models can be customized according to voltage and current requirements.

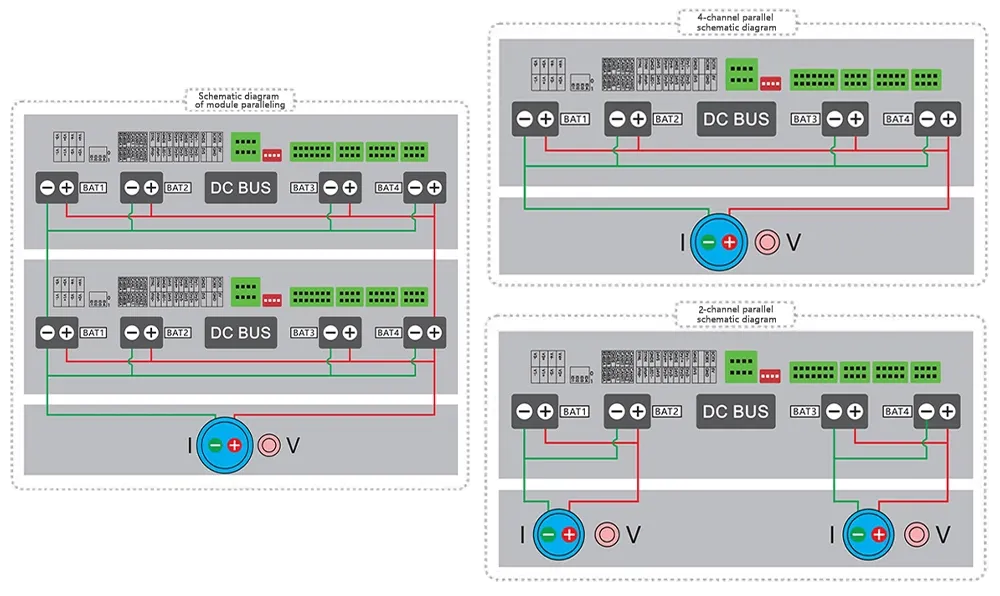

Flexibly parallel, simply and efficiently.
The channel-independent parallel and split function enables testing of batteries in different power ranges, while the modular parallel function supports high-current battery module testing.

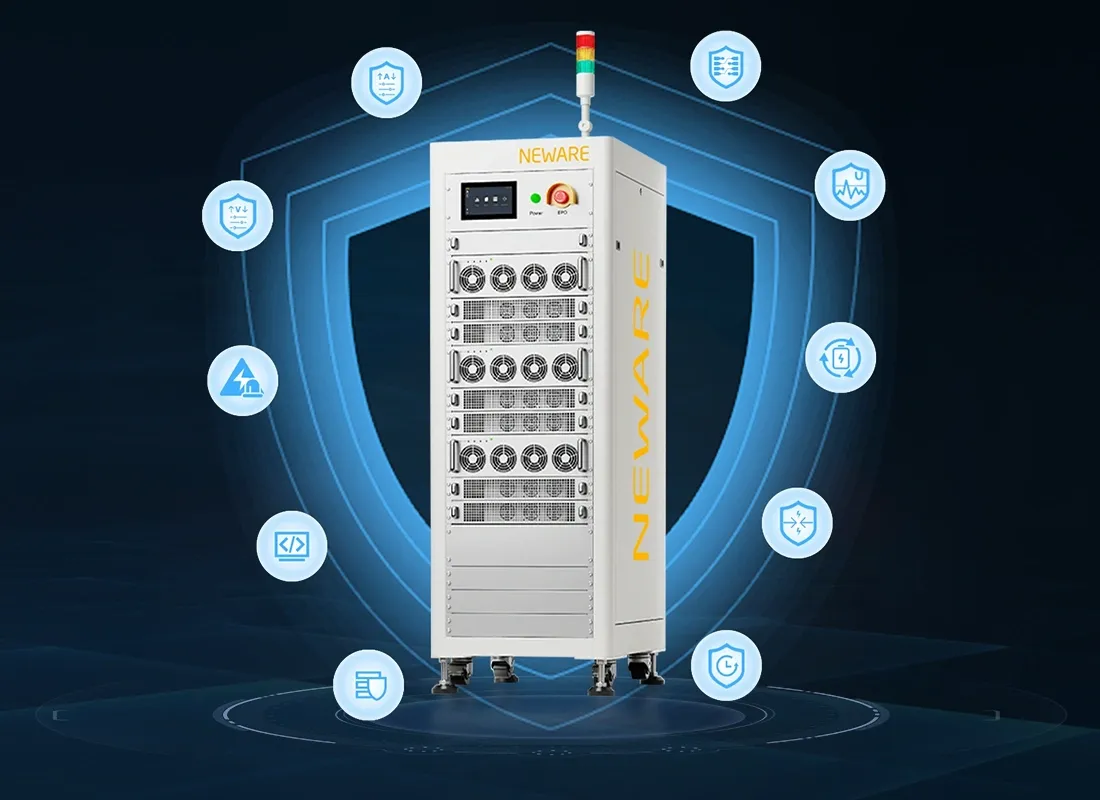

Perpetual dedication to safety protection.
- Grid Over/Under-Voltage Protection
- AC Short-Circuit and Phase Loss Protection
- Over-Voltage/Over-Current Output Protection
- Overheating Protection
- Open/Short Circuit Protection
- Emergency Stop Protection
- Self-Diagnosis Protection
- Redundant Voltage Channels Protection
- DC Polarity Reverse Protection
- Power-Off Resumption Protection
- Grid Voltage Phase and Frequency Adaptive
- Adjustable Protection Values for Voltage and Current
- Traceable Protection Log

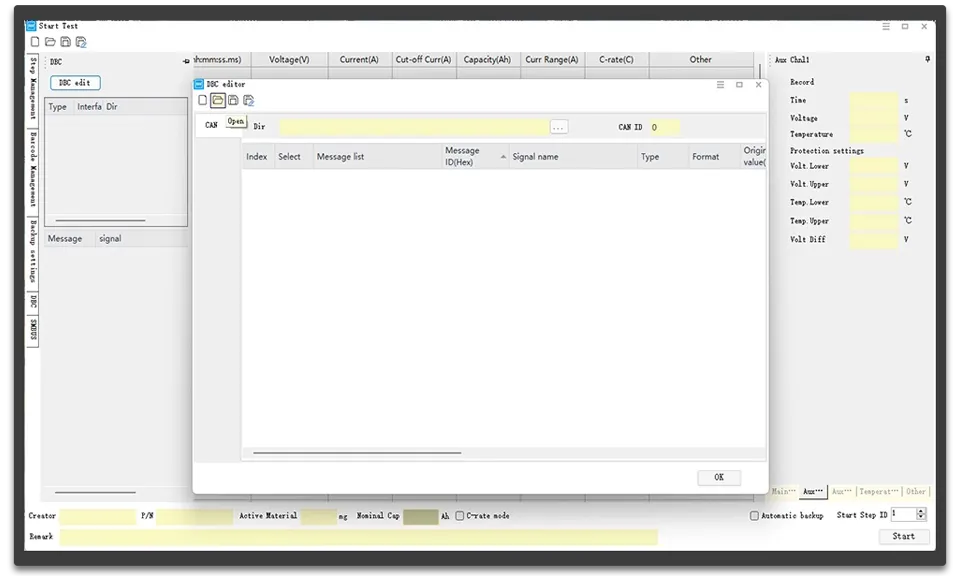

Powerful programmability.Meet diverse testing needs.
Comprehensive equipment functionality, compatible with both charging and discharging, and adaptable to various BMS systems.

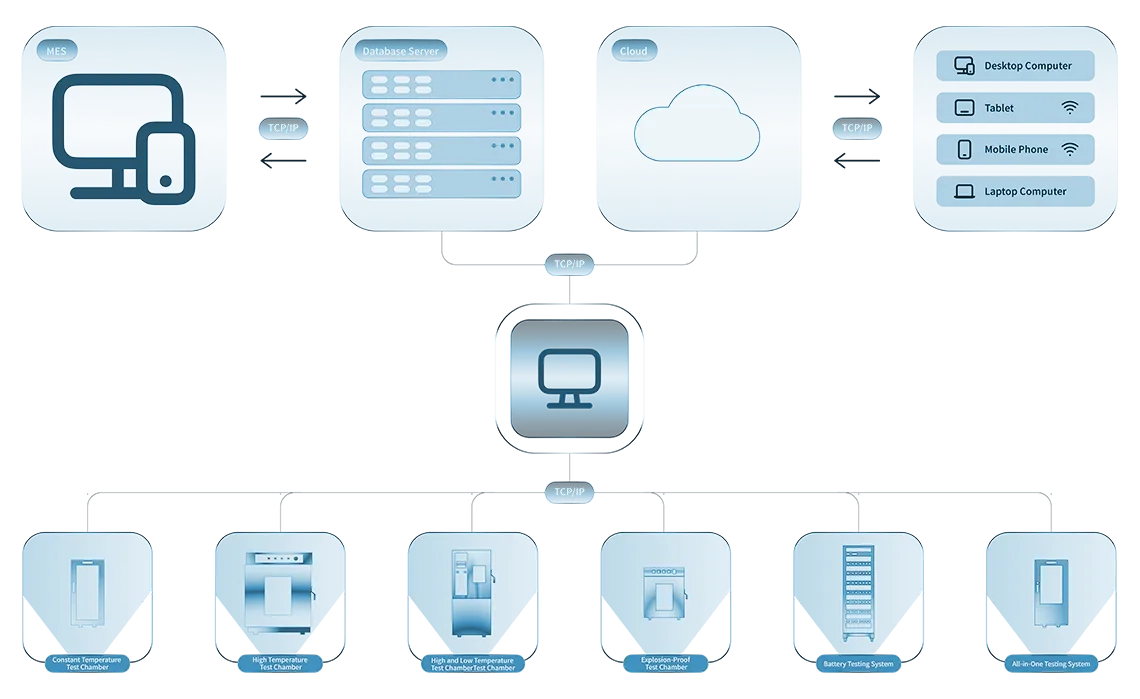

Extensive peripheral devices.Create a multi-dimensional testing environment.
Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
| Model | CE-6002n-60V600A-H(Module) |
| Voltage | |
| Outputrange \ Charge | 0V～60V |
| Outputrange \ Discharge | 3V～60V |
| Min discharge voltage | 3V |
| Accuracy | ±0.02% of F.S. |
| Resolution | 24bit |
| Current | |
| Output range | 0.5A～100A |
| Accuracy(independent range) | ±0.05% of F.S. |
| CV cut-off current | 600mA |
| Resolution | 24bit |
| Power | |
| Single channel output power | 36kW |
| Whole machine output power | 72kW |
| Time | |
| Current response time | ≤3ms |
| Current conversion time | ≤6ms |
| Min. step time | 0.1m |
