Ultimate control within your fingertips: Personalized temperature regulation.

• Consumer Electronics: NEWARE offers a range of testing solutions for Cylindrical and Pouch batteries used in 3C digital products such as smartphones, tablets, and laptops. The equipment is designed with modular components and boasts high-performance features such as rapid response times, exceptional precision, and high sampling rates. Optional SMBus communication functionality is also available, making it a suitable choice for Battery Manufacturers, 3C Manufacturers, Research Institutions, and other organizations with complex testing needs.
• Communication:NEWARE offers a range of testing solutions for Cylindrical and Pouch batteries used in 3C digital products such as smartphones, tablets, and laptops. The equipment is designed with modular components and boasts high-performance features such as rapid response times, exceptional precision, and high sampling rates. Optional SMBus communication functionality is also available, making it a suitable choice for Battery Manufacturers, 3C Manufacturers, Research Institutions, and other organizations with complex testing needs.
• Laptops Tablets:NEWARE offers a range of testing solutions for Cylindrical and Pouch batteries used in 3C digital products such as smartphones, tablets, and laptops. The equipment is designed with modular components and boasts high-performance features such as rapid response times, exceptional precision, and high sampling rates. Optional SMBus communication functionality is also available, making it a suitable choice for Battery Manufacturers, 3C Manufacturers, Research Institutions, and other organizations with complex testing needs.

Steady-state data acquisition. Embracing the energy of precision.

• Voltage Accuracy:±0.02% F.S.
• Recording Frequency:100Hz
• Current Response Time:≤20ms
• Single-Cycle Operation Count:225 cycles
• Resolution Ratio AD/DA:16Bit
• Off-Line Test:1GB/CH

The CE-5040-20V10A is equipped with advanced processors and powerful computing capabilities, enabling efficient processing of large-scale data and complex computing tasks. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications.

*Other models can be customized according to voltage and current requirements.

Mastering multiplicity: Simplifying the intricate.

• Cycle life test
• Rate Charging / Discharging Test
• Pulse simulation test
• GITT Test
• DCIR test
• dQ/dV differential capacity curve

Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.

Eco-wizardry: Enriching the world with green energy.

• Feedback Efficiency (Min):65%

The energy generated by the battery discharge can be recovered and supplied to other channel batteries or fed back to the intranet.

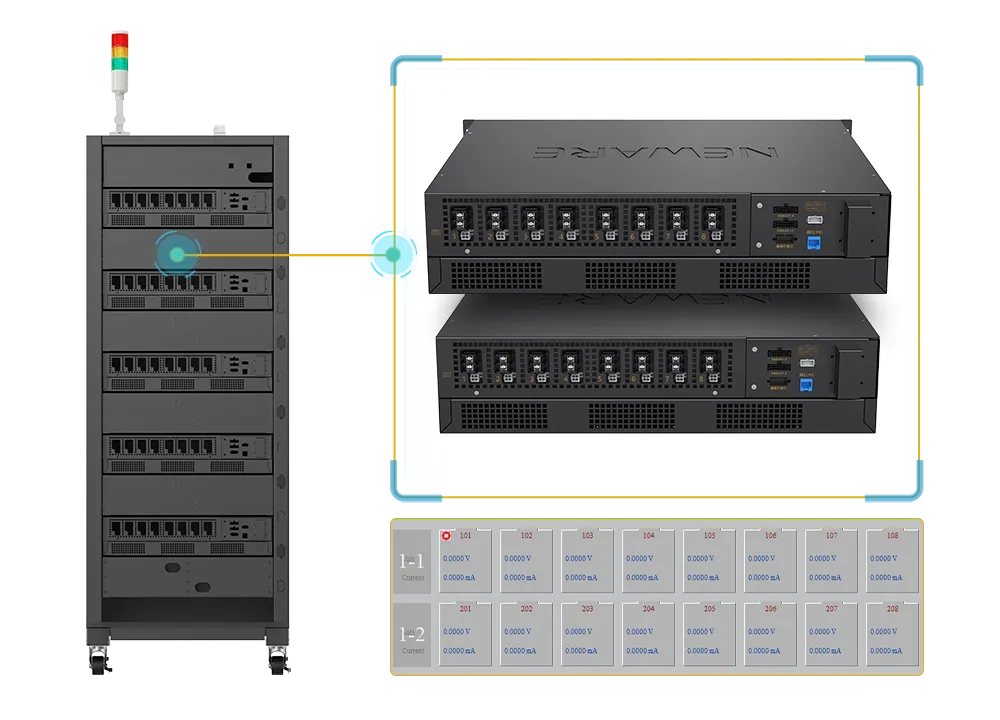

Independent channels, powerful performance.

Each unit runs independently with 8 channels, and each channel can be set to read different SMBUS parameter lists. With a small number of parameters read per channel, it can achieve a refresh rate of more than 10 times per second.

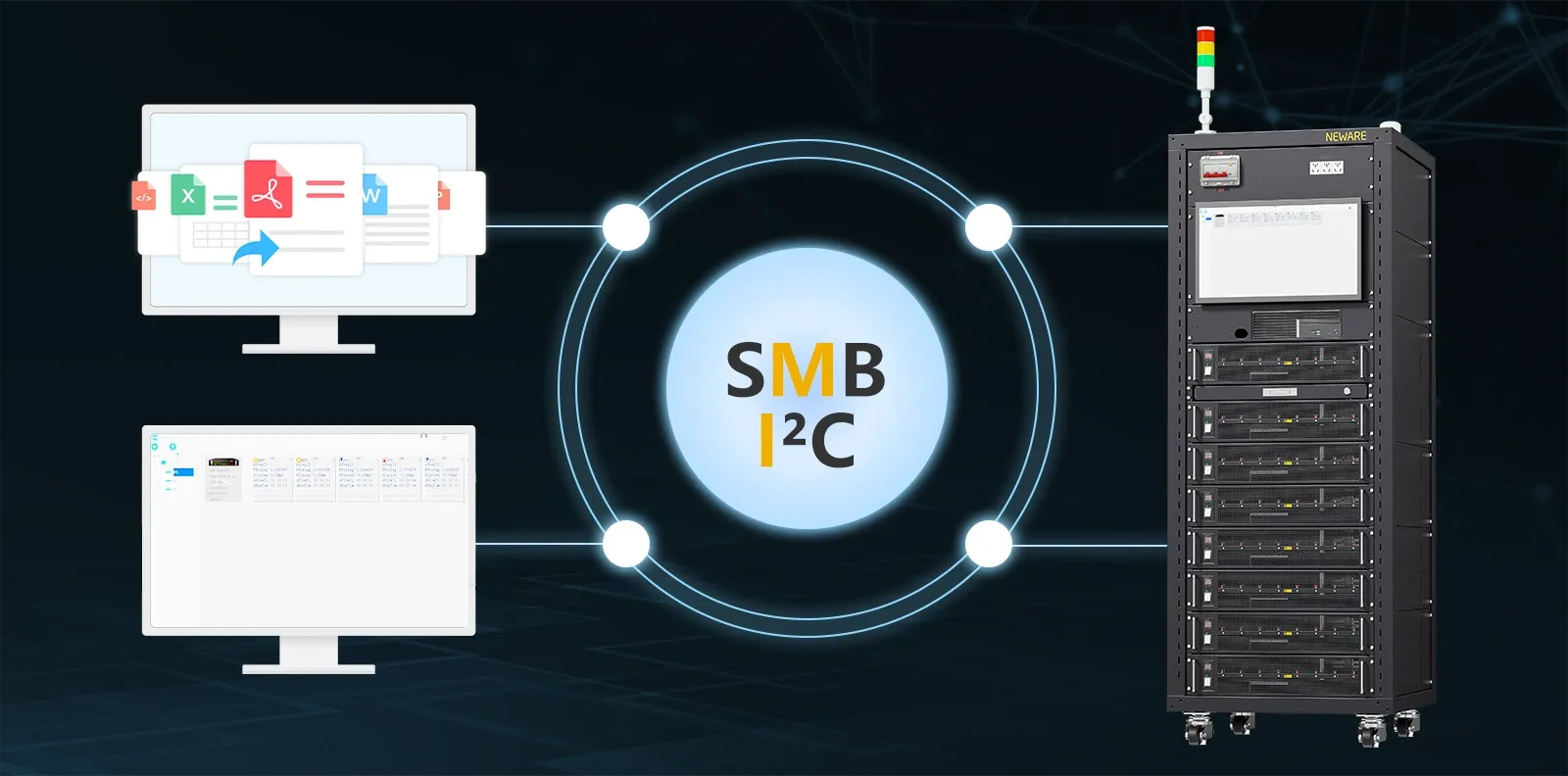

Empower your customization with unmatched compatibility.

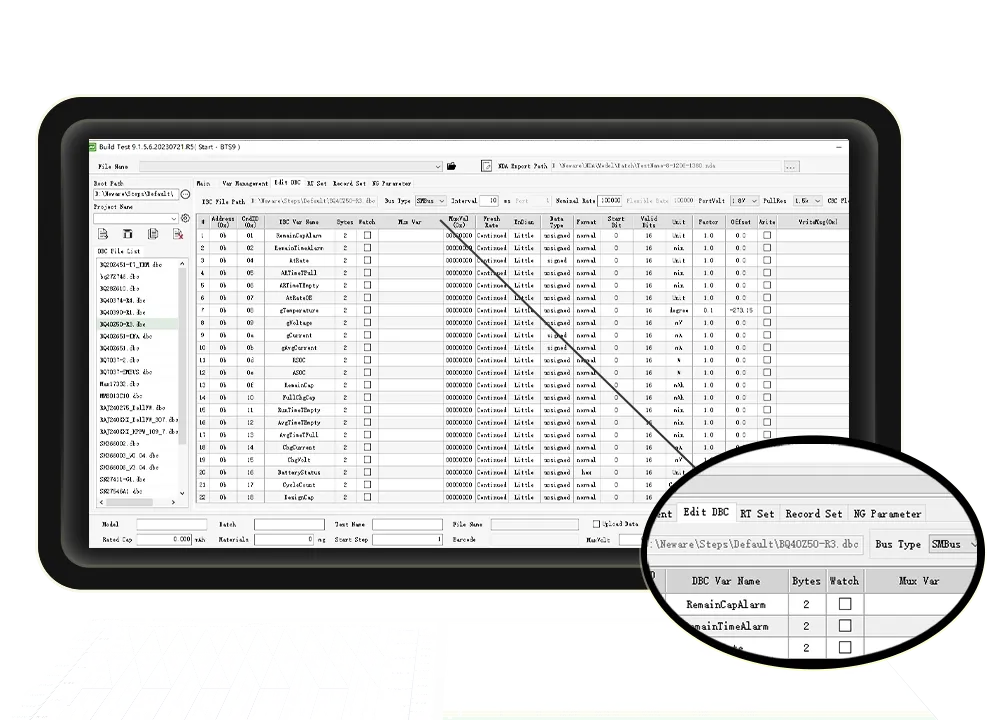

Compatible with SMBus and I2C Communication Protocols, supporting high-speed mode at 100kHz. On the software side, it supports standard specification field information instructions defined by Smart Battery Data Specification Revision 1.1. Users can edit the DBC to support different chip protocols.

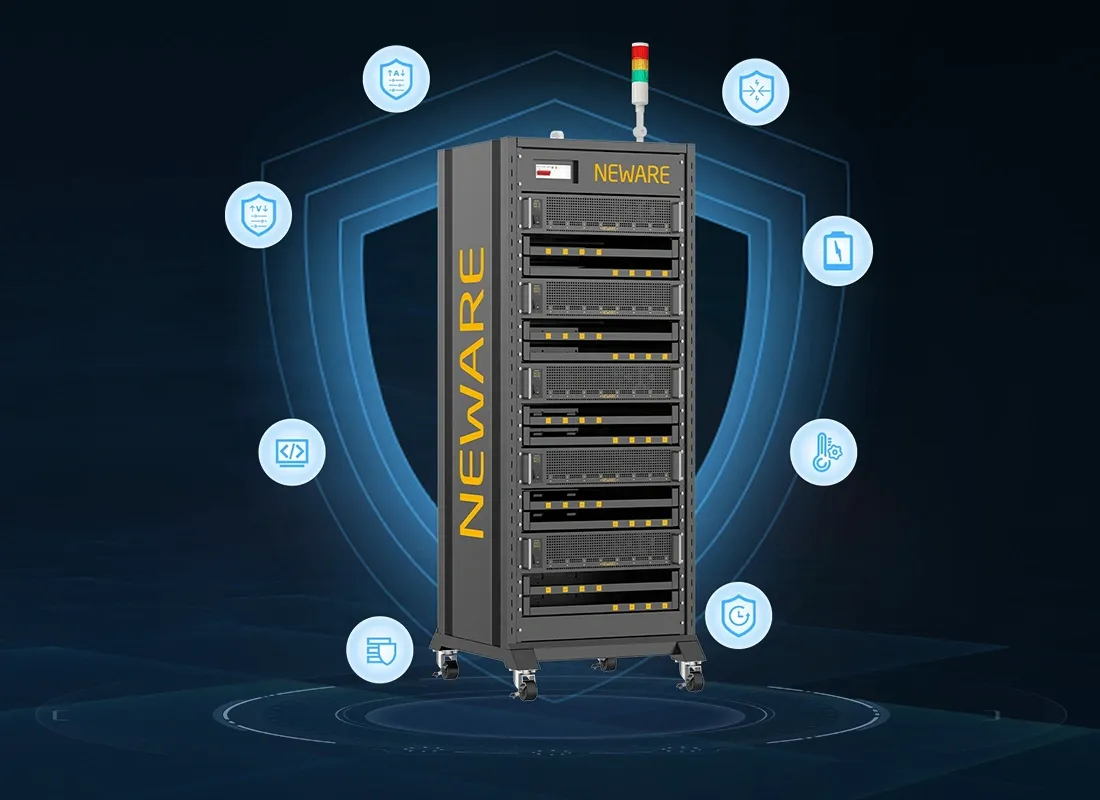

Perpetual dedication to safety protection.

• Power-down data protection
• Voltage Limits
• Current Limits
• Control parameter deviation protection
• Current and voltage fluctuation protection
• Voltage slope protection
• Delay protection
• Reverse connection protection
• Input overcurrent protection
• Output overcurrent protection
• Input overcurrent protection
• Out overcurrent protection
• Overheating protection
• Overload protection
• Output no-load protection

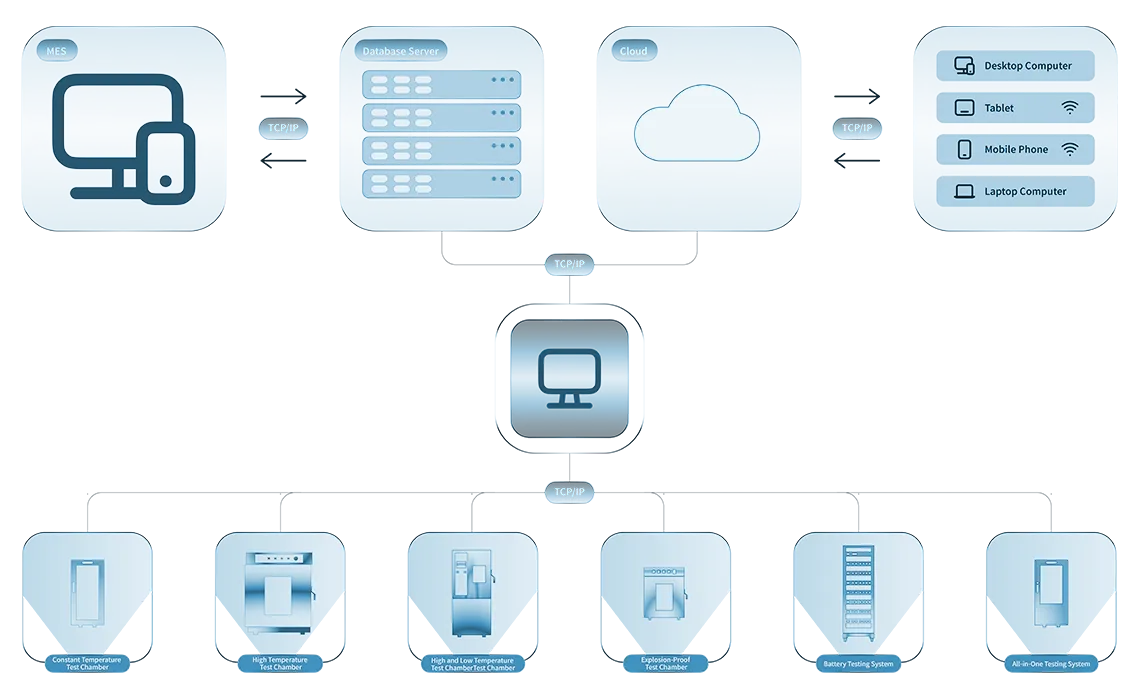

Extensive peripheral devices.Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
