Ultimate control within your fingertips: Personalized temperature regulation.

• Electric vehicles: NEWARE provides turnkey solutions for Cell, Module, and Pack batteries testing, offering a range of functions such as Cycle Life Testing, HPPC Testing, and Simulation Testing. The equipment is equipped with an energy feedback feature, which can feed back the residual battery discharge energy to the internal grid, meeting the testing needs of Battery Manufacturers, Electric Vehicle Manufacturers, and Energy Storage Companies.
• Communication EnergyStorage:NEWARE is dedicated to delivering complete energy storage battery solutions that encompass a wide range of applications, including backup power supplies, communication base stations, and photovoltaic / wind power stations. Equipped with advanced software functionality, our solutions can tackle complex testing requirements with ease.
• Electric Energy Storage:NEWARE is dedicated to delivering complete energy storage battery solutions that encompass a wide range of applications, including backup power supplies, communication base stations, and photovoltaic / wind power stations. Equipped with advanced software functionality, our solutions can tackle complex testing requirements with ease.

Steady-state data acquisition. Embracing the energy of precision.

• Voltage Accuracy:±0.02% F.S.
• Current Accuracy:±0.05% F.S.
• Current Response Time:≤1ms
• Minimum dwell time:100ms
• Resolution Ratio AD/DA:16Bit
• Off-Line Test:1GB/CH

The CE-5012-5V600A is equipped with advanced processors and powerful computing capabilities, enabling efficient processing of large-scale data and complex computing tasks. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications.

*Other models can be customized according to voltage and current requirements.

Mastering multiplicity: Simplifying the intricate.

• Cycle life test
• Rate Charging / Discharging Test
• Pulse simulation test
• GITT Test
• DCIR test

Covering multiple testing functions, customizing and editing step contents in tabular form, supporting custom variables and custom functions, conducting comprehensive testing of battery cells from various perspectives.

Enriching the world with green energy.

• Feedback Efficiency (Min):65%

The energy generated by the battery discharge can be recovered and supplied to other channel batteries or fed back to the intranet, with an energy recovery efficiency of not less than 65%.

Pathways united: Relentless reliability.

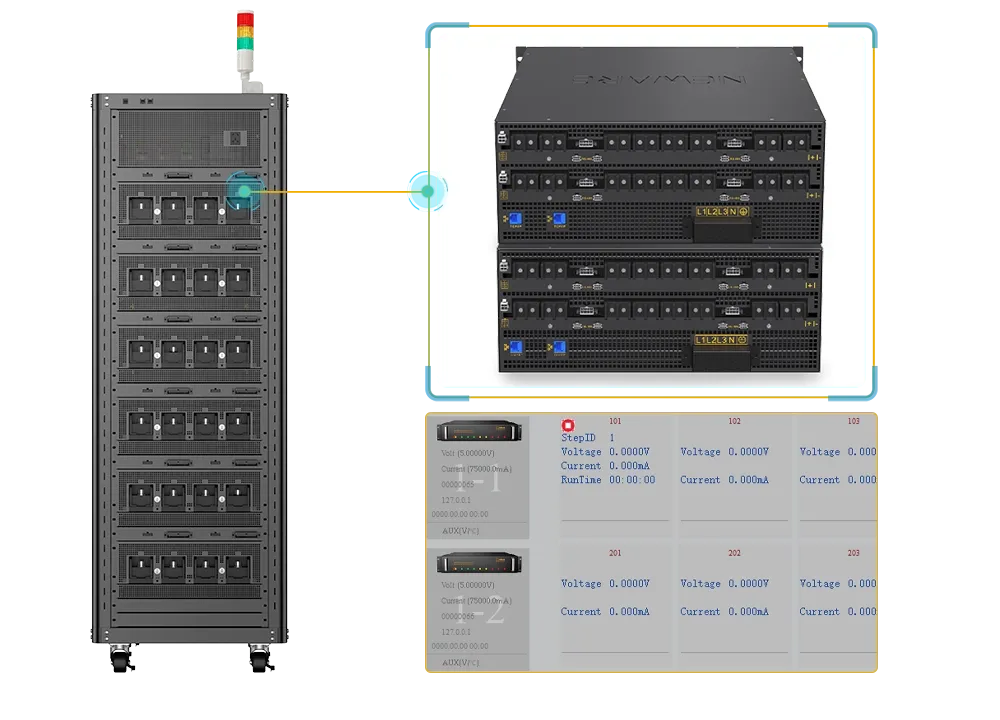

12CH independently operated, supports parallel connection of any adjacent channels, automatically blocks faulty channels, supports fault-tolerant operation.

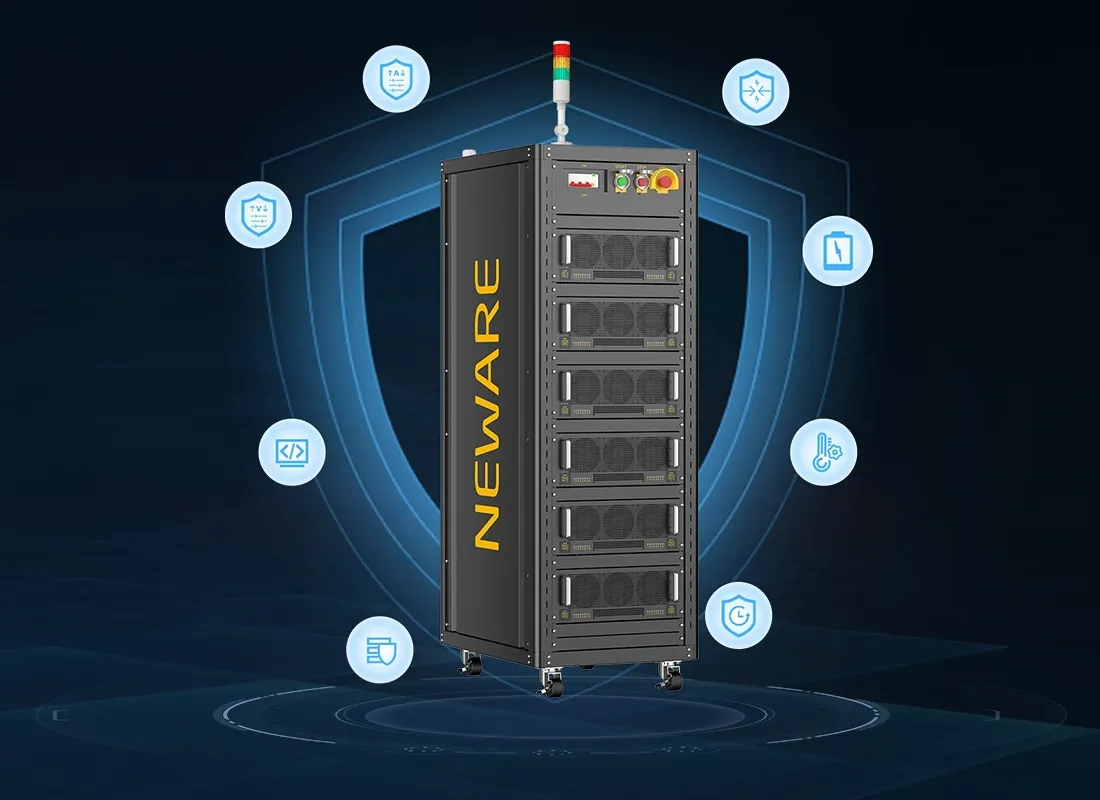

Perpetual dedication to safety protection.

• Power-down data protection
• Offline test protection
• Voltage Limits
• Current Limits
• Capacity upper limit
• Delay time protection
• Reverse connection protection
• Input overvoltage protection
• Output overvoltage protection
• Input overcurrent protection
• Output overcurrent protection
• Overheating protection
• Overload protection
• Output no-load protection

Extensive peripheral devices.Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
