Efficient battery testing solution.

• Electric Tools: NEWARE offers comprehensive battery testing solutions for both household and industrial electric tools, providing tailored and diverse options based on usage scenarios to ensure optimal battery performance.
• Intelligent alarming and protection: Combines hardware-level overvoltage/overcurrent/overtemperature protection with software-programmable safety thresholds (voltage/current limits) for dual-layer risk mitigation.
• Laptop and Tablet BatteryCurrent battery technology for laptops and tablets is moving towards higher energy density and fast charging, while focusing on improving battery safety and cycle life. Future trends point to the use of new materials such as solid-state electrolytes and the integration of smarter battery management systems to achieve longer life and better environmental resilience.

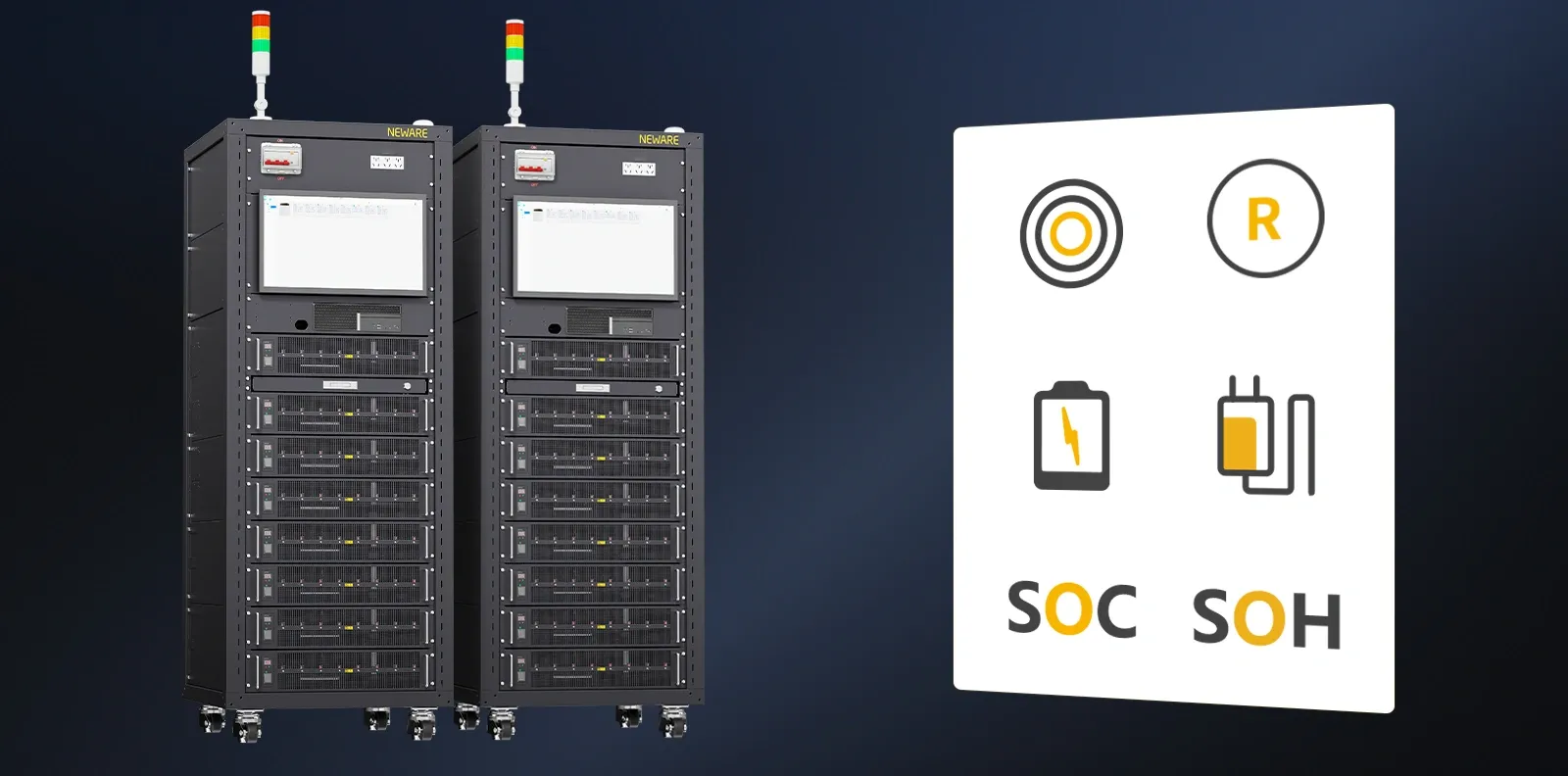

The CE-5008Q-20V30A features a dual-closed-loop structure of constant current and constant voltage sources. It offers high-precision voltage and current testing, rapid response, and support for various testing modes, including constant current (CC), constant voltage (CV), CC-CV, and pulse charge/discharge. This makes it suitable for evaluating performance parameters of various batteries used in laptops, drones, and power tools, providing a comprehensive battery testing solution.

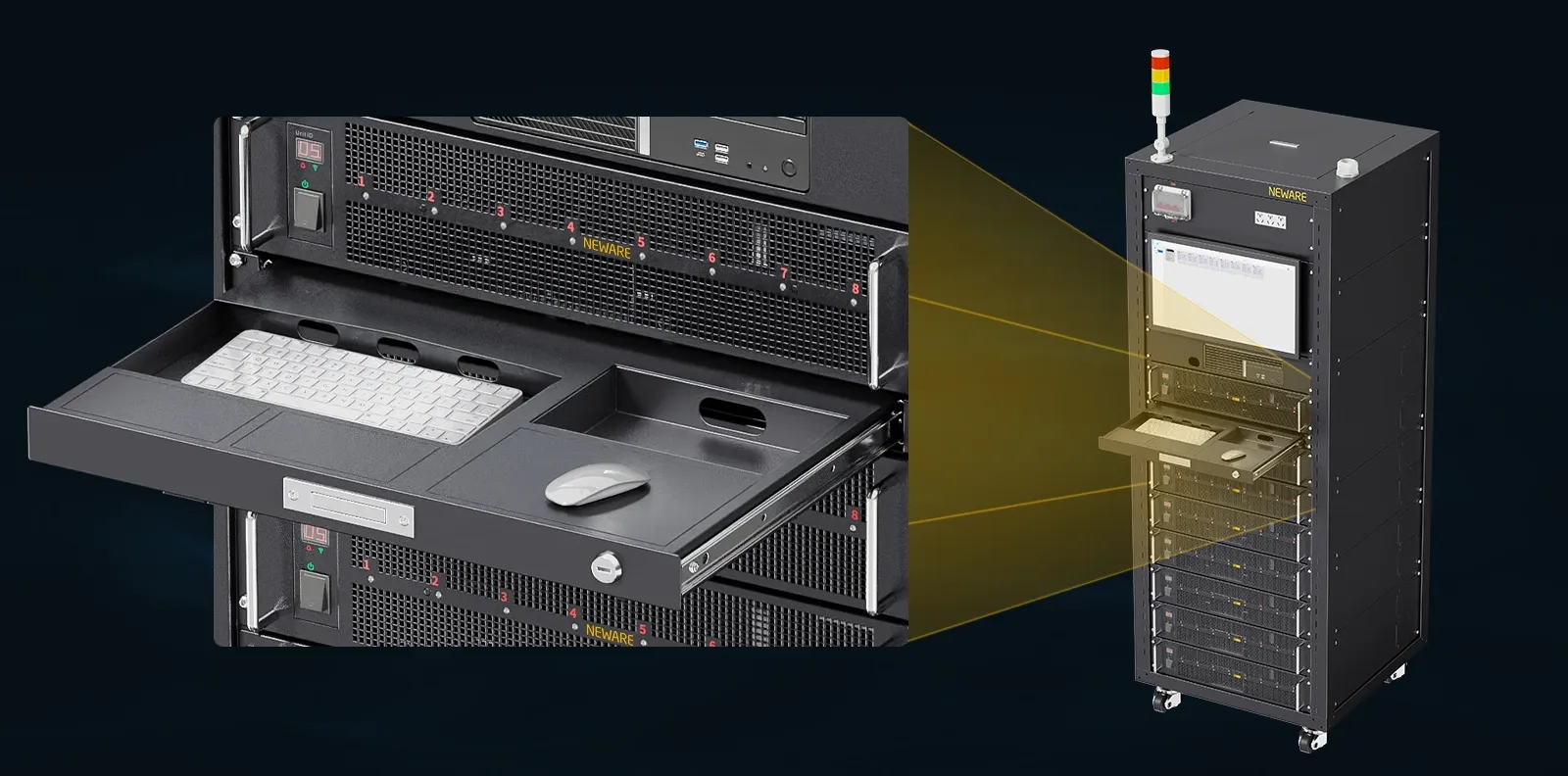

Built-in PC high integration.

The system integrates a computer into the charge/discharge equipment rack, enabling standalone operation without an external computer. This design significantly saves laboratory space and reduces external wiring, lowering the risk of wiring failures and enhancing test reliability. It also supports remote monitoring and operation, enhancing the system's flexibility and convenience.

Comprehensive and accurate battery performance evaluation.

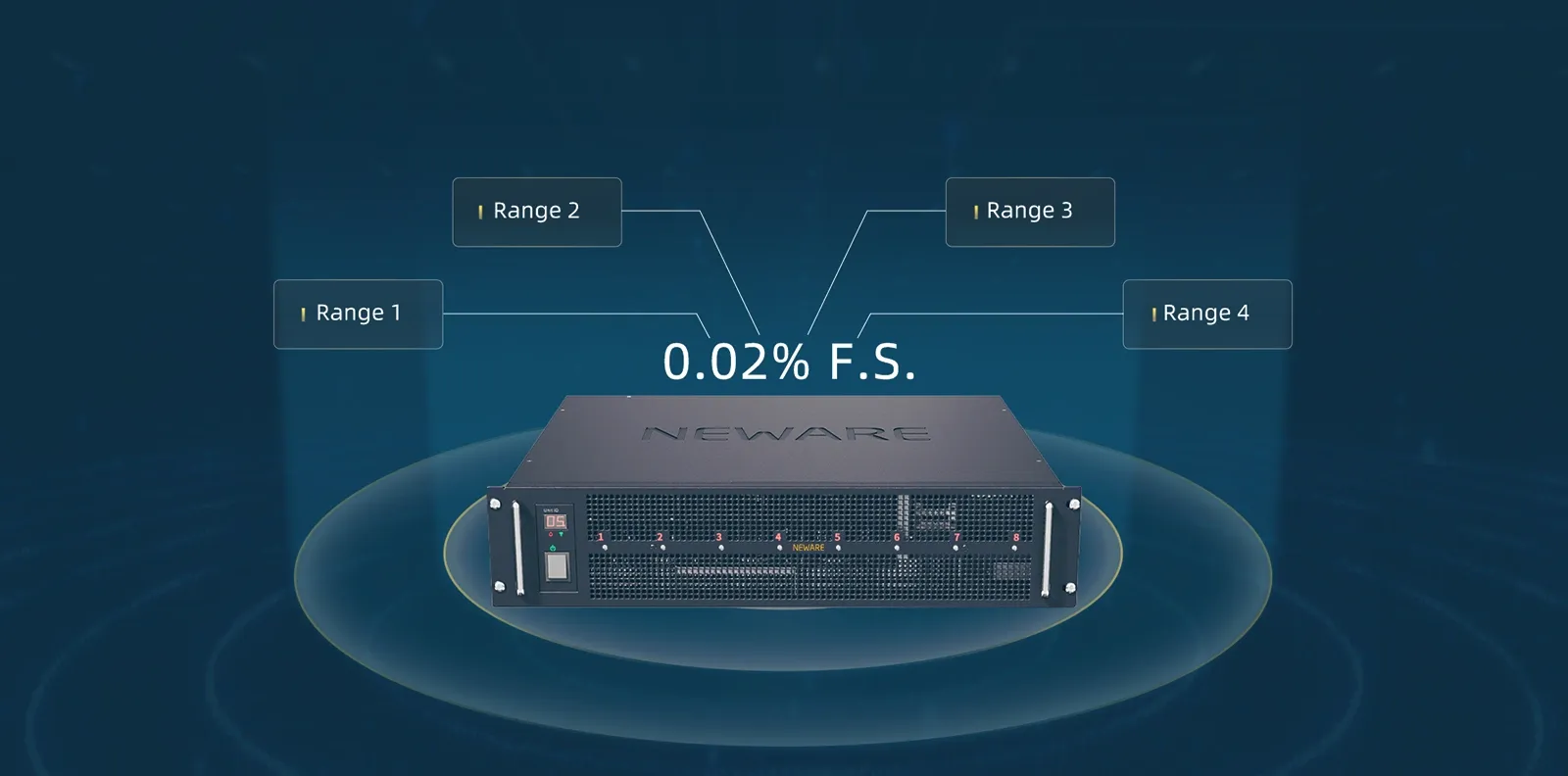

With 4 current ranges and rapid response, it captures battery performance details for reliable health assessment.

• Covering 0.03A, 0.3A, 3A, and 30A, ±0.02% of F.S. accuracy, from micro - pulse discharge to 30A load testing, accurately captures battery degradation mechanisms.
• ≤30ms current response time to capture dynamic changes during charge/discharge, replicating real - world transient conditions.
• 8 channels sampled synchronously at 100Hz (Δt=0.01s/ΔI=30mA/ΔU=20mV) to detect micro-short-circuit internal resistance changes.
• Four - wire measurement eliminates lead resistance errors.
• Nested loops up to 4 layers deep to simulate complex real-world conditions, such as fast-charging followed by daily use or different load scenarios.

SMBus protocol parsing and custom DBC configuration.

SMBus/I²C protocol parsing and custom DBC configuration read battery state data. It supports intelligent battery dynamic management and testing, synchronously decoding over 20 parameters including SOC/SOH/temperature. During testing, DBC files help identify issues by parsing messages and locating abnormal signals.
