CE-6000-Pro Power Cell Testing System
CD-6006A-5V1200A-PS-H

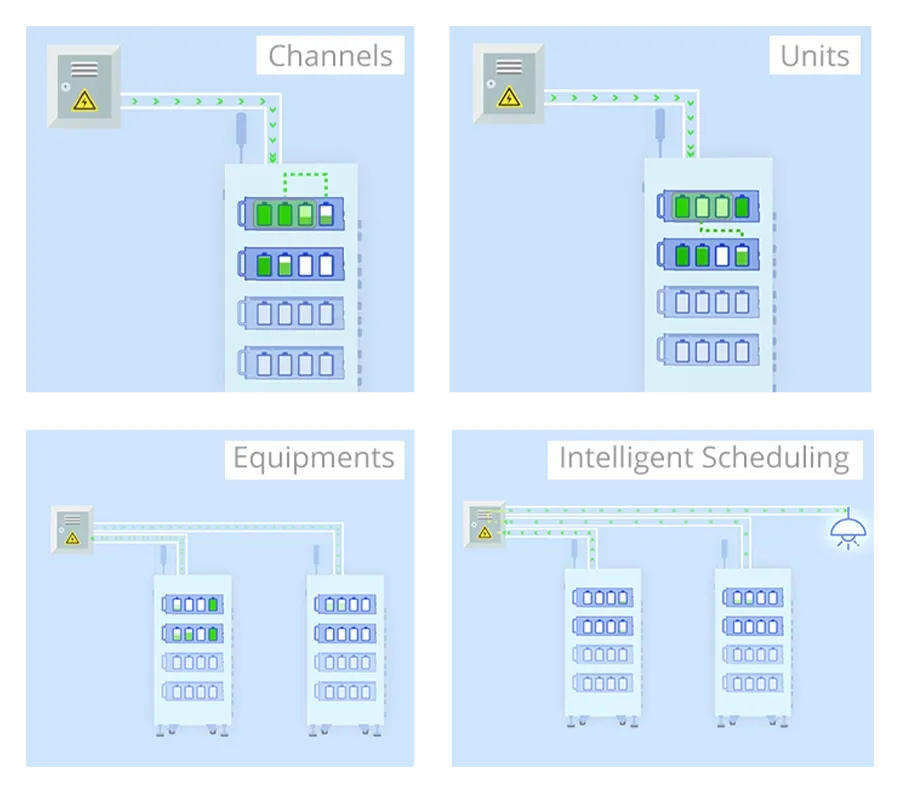

N+1 channel scheme and 750V DC bus improve energy utilization. The table shows multiple ranges: Range 1: 75A / Range 2: 150A / Range 3: 300A / Range 4: 600A (with superimposed shared channels, Range 4 can reach 1200A)
Innovative shared architecture.

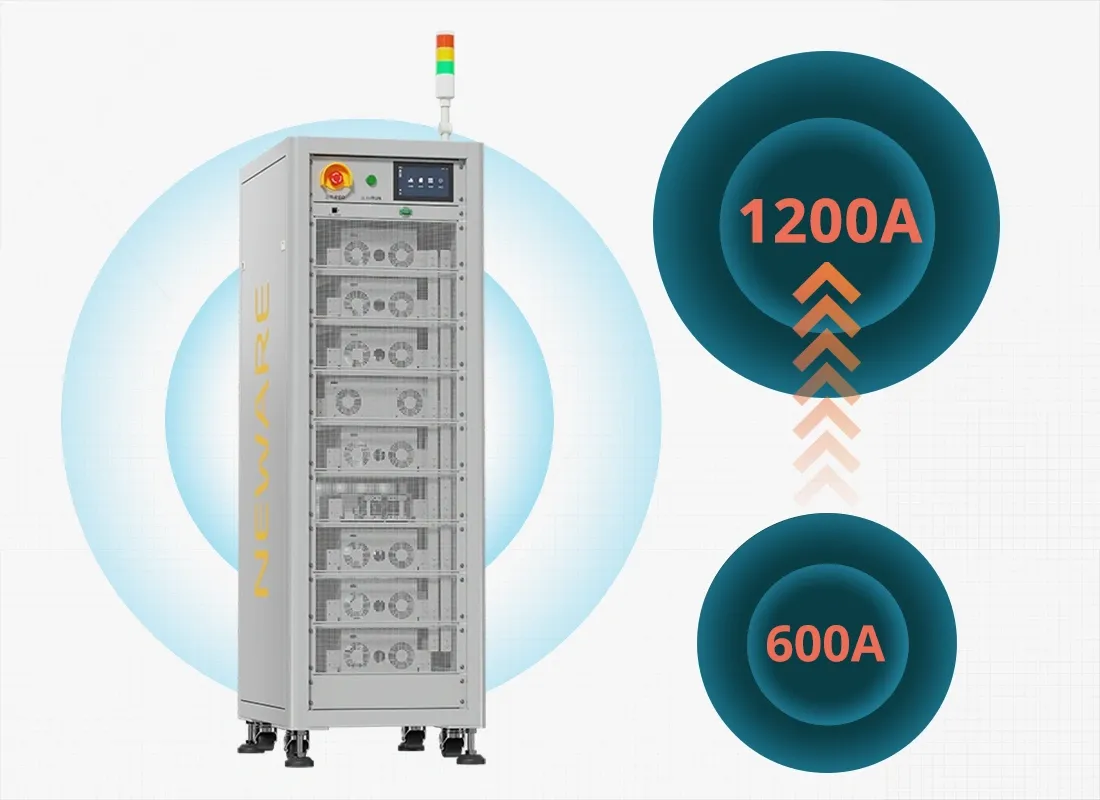

Equipped with a 600A shared channel, it can be intelligently superimposed onto any other channel, enabling the current of a single channel to rapidly increase from 600A to 1200A, meeting the extreme testing requirements of large-capacity power batteries.
Energy efficiency upgrade and green energy saving.
With an efficient DC bus system, DC bus technology optimizes testing efficiency and safety through centralized energy supply and recovery, achieving up to 80% energy recovery and significantly reducing operating costs.
Full scenario coverage and data insights.
Supports software programmed dynamic allocation, catering to precision small current testing and ultra high power pulse experiments, covering all-in-one life-cycle testing needs.

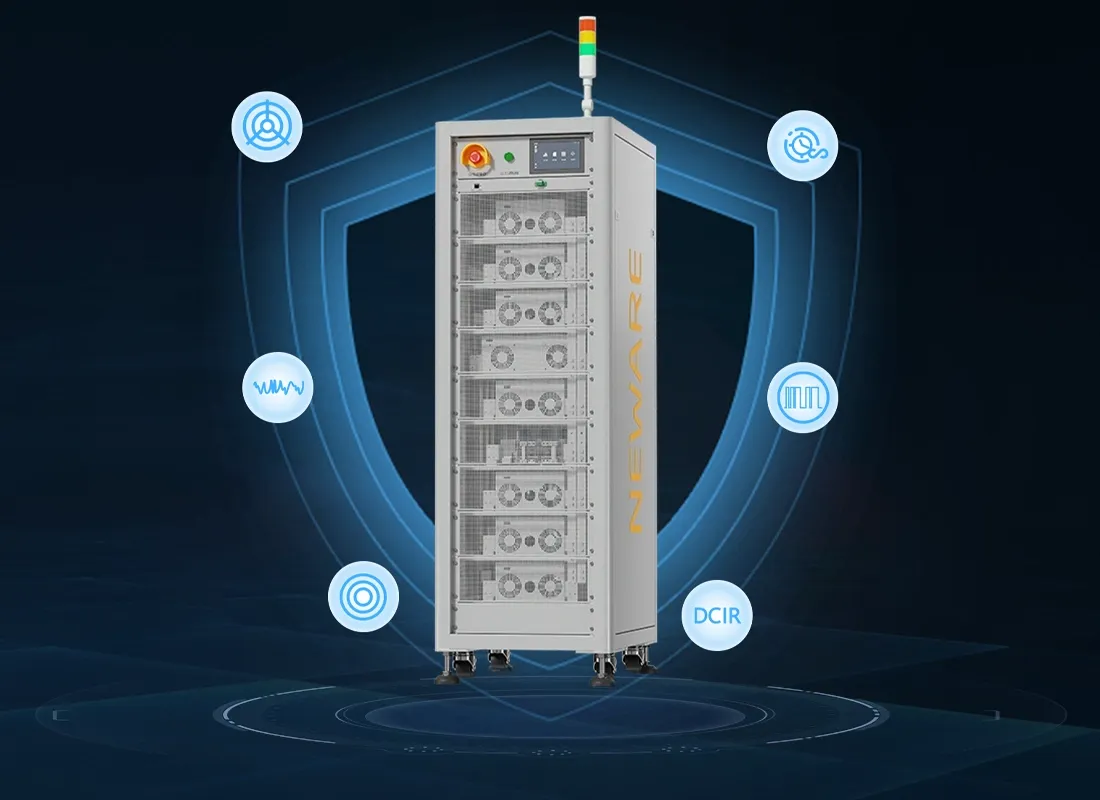

Cycle life testing/Pulse testing/Condition simulation/DCIR Test
- Voltage accuracy: ±0.02% F.S.
- Current accuracy: ±0.05% F.S.
- Current response time: ≤3ms
- Minimum pulse: 50ms
Intelligent data analysis.
Customizable 4-axis curve charts, with Excel/Txt export and customizable report settings, enabling one-click test report generation.
Efficient operation and maintenance experience.

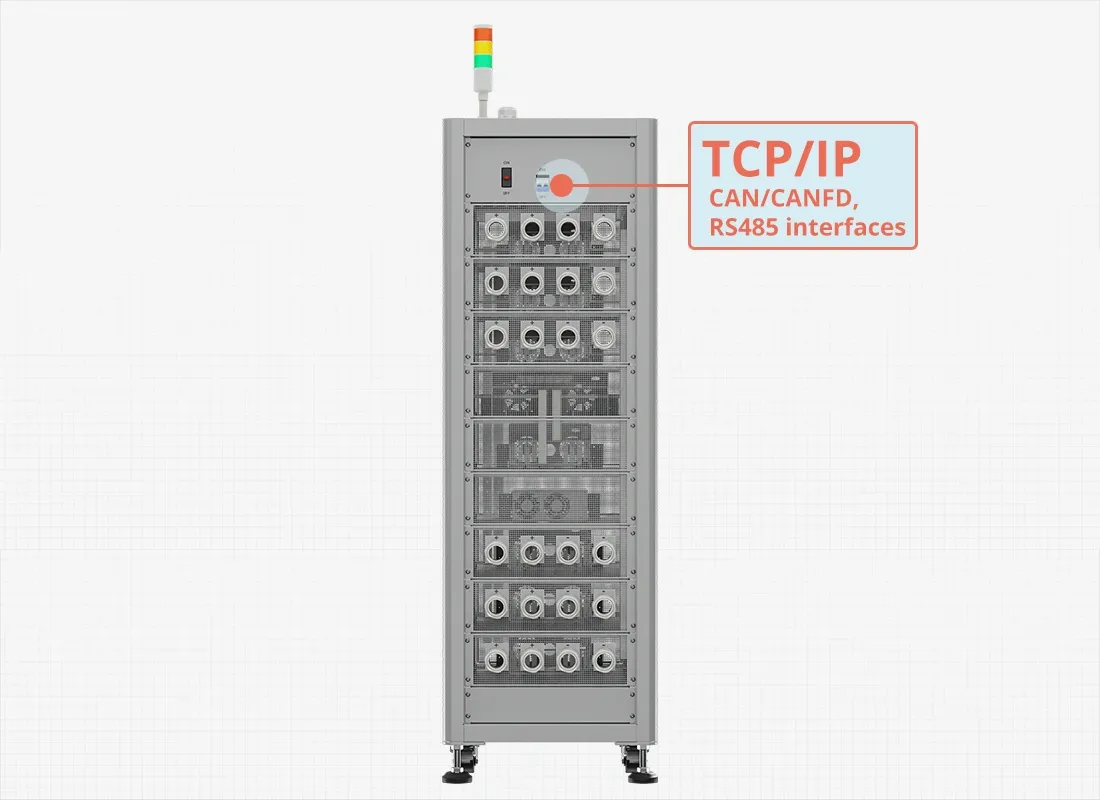

Barcode scanning binds test data, supporting historical tracing and batch management. Ethernet/TCP/IP communication, with optional CAN/CANFD, RS485 interfaces, is compatible with mainstream BMS systems.
| Model | CD-6006A-5V1200A-PS-H |
| Channels per cabinet | 6 |
| Main channel | |
| Channel | The CC-CV constant current source and constant voltage source adopt a double closed-loop |
| characteristics | structure |
| Channel control mode | Independent control |
| Current superposition | Equipped with a 600A superimposed channel, which can be used in intelligent parallel with 6 main channels. When parallel, the maximum output current of a single channel is 1200A |
| Input indicators | |
| Input power supply | DC 750V |
| Power factor | DC 740V ~ 800V, full load / DC 700V ~ 740V, reduced to 60% |
| Input impedance | ≥62.5KΩ |
| Input power | 15kW |
| Input current | 20A |
| Overall system efficiency (Max) | 80% |
| Voltage | |
| Output range | Charger:0V ~ 5V / Discharge:1.5V ~ 5V |
| Min discharge voltage | 1.5V |
| Accuracy | ±0.02% of F.S. |
| Current | |
| Output range | Range 1: 75A |
| Range 2: 150A | |
| Range 3: 300A | |
| Range 4: 600A (stacked channel range 4:1200A) | |
| Accuracy(independent range) | ± 0.02% of F.S. |
| Constant voltage cutoff current | 0.05% F.S. (per independent range) |
| Resolution ratio | 24bit |
| Time | |
| Current response time | ≤3ms |
| Current conversion time | ≤6ms |
